| Features 1. | |
|---|---|
| Caratteristiche |
L3 Features : • Static Route (IPV4/IPV6) • Route Aggregation • DHCPv4 Server • DHCPv6 Server • RIPv1/v2/RIPng • OSPF v2/v3 • BGP4/BGP6 • VRRP (IPV4/IPV6) • PIM (IPV4/IPV6) • Virtual stacking L2 Features : 1. MAC Address Table • MAC Aging Time • MAC Filter • MAC Notification 2. Basic Management • Console/Telnet/SSH • Http/Https、SSL/TLS • FTP/TFTP • Syslog • SNMP(v1/v2c/v3)、SNMP Trap • RMON • SNTP/NTP • CPU protect • Software/Hardware watchdog • Firmware Upgrade/Backup • Ping/Traceroute • Onvif • ZTP 3. Port Config • Bandwidth Control • Flow Control • EEE • MTU • CFM(802.1ag) • EFM OAM(802.3ah) • DDM • Storm Control • Port Isolation • Port Security • Virtual Cable Test • ULDP/Cisco UDLD 4. Discovery • LLDP(802.1ab) • LLDP-MED 5. Link Aggregation • Static • LACP(802.3ad) • Load Balance(src-mac/dst-mac/src-ip/dst-ip) • Max groups and ports per group 6. VLAN • VLAN(802.1Q 4K) • Access/Trunk/Hybrid • Private VLAN • VLAN Filter • MAC-based VLAN • Protocol-based VLAN • IP Subnet-based VLAN • Voice VLAN • GVRP/GMRP • QinQ/Selective-QinQ/Flexible QinQ • VLAN Translation/N:1 VLAN Translation • Guest VLAN 7. Network Loop Detection • Loopback Detection • ERPS 8. Spanning Tree • STP/RSTP/MSTP • MSTP Support 64 instance • BPDU Guard/Root Guard/BPDU Tunnel 9. ARP • Static ARP • ARP Scanning Prevention • ARP Spoofing Prevention • ARP Guard • Gratuitous ARP • Dynamic ARP Inspection • ARP Quantity Control IPv4 Related Function : 1. ICMP • Anti ICMP Attack • ICMP Rate Limit • ICMP Unreachable Drop 2. Control Multicast • DCSCM 3. Multicast VLAN • Multicast VALN 4. IGMP • IGMP SNOOPING v1/v2/v3 • Fast Leave • IGMP Proxy 5. DHCP • DHCP Client/BOOTP • DHCP Relay • DHCP Snooping • DHCP Option 82/43/60/61/67 IPv6 Related Function : 1. IPv6 Basic • IPv6 ND Snooping 2. DHCPv6 • DHCPv6 Relay • DHCPv6 Snooping • IPv6 SAVI • Security RAw 3. IPv6 Multicast Routing • MLD v1/V2 Snooping 4. IPv6 Features • SNMP over IPv6 Support • HTTP over IPv6 Support • SSH over IPv6 Support • DNS over IPv6 Support • IPv6 ping/traceroute Support • IPv6 Telnet Support • IPv6 Radius+ Support • IPv6 Tacacs+ Support • IPv6 SNTP/NTP Support • IPv6 FTP/TFTP Support • IPv6 IPSec Support • IPv6 ACL QoS(Quality Of Service) : 1. Basic • Trust COS/DSCP • Trust Port 2. Scheduling • SP • WRR • WDRR 3. PolicyMap Stream • Based on VLAN • Based on COS/DSCP • Aggregate PolicyMap • Ingress PolicyMap 4. Policing • CAR Stream Shaping(leak algorithm) • Ingress Policing 5. Rewrite • COS/802.1p Priority • IP Precedence • IPv4 DSCP/IPv6 DSCP • drop-precedence • internal-priority • Ingress/Egress Rewrite 6. Queuing • DSCP to DSCP mapping • DSCP to DP mapping • DSCP to Queue mapping • COS to DP mapping • COS to Queue mapping ACL : 1. IP-ACL • SIP/DIP • IP Protocol • IP Priority(DSCP,TOS, Precedence) • TCP,UDP src,dst Port 2. MAC-ACL • SRC/DST MAC • VLAN • COS • Tag/Untag 3. IP-MAC ACL • MAC-ACL and IP-ACL 4. User-defined ACL • Base on user defined profile 5. ACL Features • Based on time period ACL • ACL on VLAN • Based on ACL Stream |
| Sicurezza |
Security 1. 802.1x • Port Based Authentication • Support EAPoR • MAC based Authentication • Guest VLAN 2. MAB • Based on Port Authentication • Based on MAC Authentication 3. MAC Address Count Limit • Based on Port • Based on VLAN 4. IP Address Count Limit • Based on Port • Based on VLAN 5. Access Management • Based on source mac and IP address 6. Deny DoS Attack • TCP Flag • TCP Flagment • IP Segment • ICMP 7. TACACS+ • Standard Support 8. Radius • Standard Support • Client, Support MD5 9. SSL • Openssl 1.1.0 |
| Performance 2. | |
| Capacità di commutazione | 160 Gbps |
| System Specifications. | |
| Alimentazione | External adapter, Power input 12VDC/3А |
| Data Rate. | 10Gbps |
| Standard | IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3u 100-BASE-TX, Fast Ethernet, IEEE 802.3ab 1000BASE-T, Gigabit Ethernet, IEEE 802.3x Full-duplex Flow Control, IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3ae changeable (10GBASE-SR/LR/ER), IEEE 802.1Q Virtual LANs (VLANs), IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP), IEEE 802.3ah Ethernet Link OAM, IEEE 802.1ab Link Layer Discover Protocol (LLDP), IEEE 802.3ad Link Aggregation Control Protocol (LACP), IEEE802.3z 1000Base-SX/LX, IEEE 802.3bz 2.5 Gigabit Ethernet |
| Alimentatore incluso | Sì |
| Consumo di energia |
• DC full load: 24.82W • AC full load: 29.6W |
| MTBF | 50,000 hours |
| Velocità di inoltro dei pacchetti | 119.04 Mpps |
| Montaggio | Supporto da tavolo, Montaggio a parete |
| Tabella indirizzi MAC | 16 K |
| Cornice Jumbo (KB) | 12 |
| Buffer di pacchetti | 12 Mbit |
| Others. | |
| Approvazione e conformità |
● FCC Part 15 Subpart B, Class A ● CE ● UKCA ● EN 62368-1 ● EN 55032 ● EN 55035 ● EN 61000-3-3 ● RoHS |
| Umidità di esercizio | 10% RH ~ 90% RH |
| Temperatura di esercizio | 0°C ~ 40°C |
| Umidità di stoccaggio | 5% RH ~ 90% RH |
| Temperatura di stoccaggio | -40°C ~ 70°C |
| Contenuto della confezione |
● XEL-0891 ● Power Adapter with 4 Power Plug ● DB9 to RJ45 Console Cable ● Rubber Feet ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Colore | Grigio |

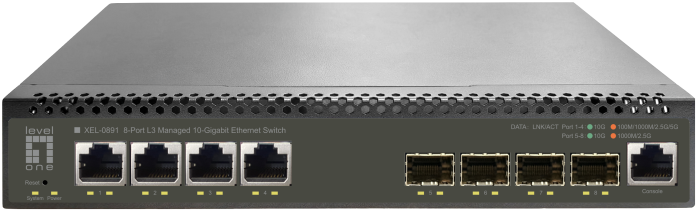

| Numero di modello | XEL-0891 |
| Physical Specifications. | |
| Dimensioni (L x P x A) | 220 x 130 x 37.8 mm |
