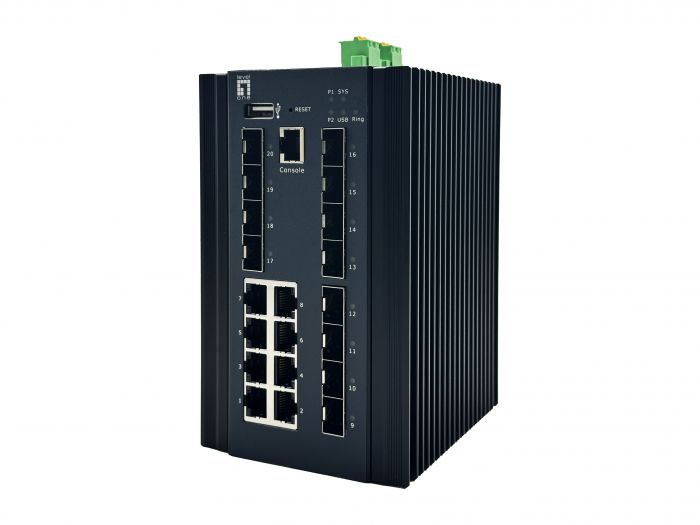

Lo switch Ethernet industriale gestito L2+ LevelOne IGX-2072 è progettato per ambienti difficili. Con le sue 8 porte Gigabit RJ45, 8 porte Gigabit SFP e 4 porte SFP+ a 10 Gigabit, offre una gestione completa di livello 2 e capacità di failover rapido. Questo switch garantisce operazioni ininterrotte con la sua rete ridondante ERPS, vantando un tempo di ripristino inferiore a 20 ms, offre connettività e larghezza di banda eccezionali per applicazioni industriali mission-critical.
| Logistics Data. | |
|---|---|
| Codice del sistema armonizzato (SA) | 851762 |
| Codice prodotto doganale (TARIC) | 8517620000 |
| Power. | |
| Ridondanza di potenza | Dual Power Input |
| Features 1. | |
| Caratteristiche |
Layer 2 functions Port aggregation ■ GE port aggregation ■ 2.5GE aggregation ■ 10GE aggregation ■ Static aggregation ■ LACP dynamic aggregation ■ Up to 64 aggregation groups and up to 8 ports per group Port features ■ Support IEEE802.3x flow control ■ Support interface counters ■ Support port isolation ■ Port mirroring ( One-to-One, Many-to-One) ■ Support loop detection(Port-based; VLAN-based) ■ Support broadcast storm suppression(broadcast; unknown multicast; unknown unicast) Mac-address table management ■ Static Mac-address management ■ Dynamic Mac-address Management ■ Filtering Mac-address ■ MAC limit based on port and VLAN ■ MAC flapping based on port and VLAN GVRP ■ Normal mode ■ Fixed mode ■ Forbidden mode VLAN ■ Support access mode ■ Support trunk mode ■ Support hybrid mode VLAN classification ■ Mac Based VLAN ■ IP Based VLAN ■ Protocol Based VLAN QinQ ■ Port-based QinQ ■ VLAN-based QinQ(VLAN-stacking; VLAN-mapping) ■ Flow-based QinQ Ring network protocol ■ Support IEEE802.1D-STP ■ Support IEEE802.1W-RSTP ■ Support IEEE802.1S-MSTP ■ Support G.8032 ERPS protocol，single ring, sub Ring and major ring Recovery time ≤20ms Multicast functions ■ IGMP snooping ■ Group address LLDP (Link Layer Discovery Protocol) |
| Gestione |
User Management ● Support password protection ● Support user authorization management SNMP ● Supporting SNMP V1/V2C/V3 version Web Management ● Support HTTP V1.1 ● Support HTTPS CLI management ● Console/Telnet command line management RMON ● Support RMON(Remote Monitoring) alarm Firmware upgrade Fault Detection ● Ping/Tracerout ● Dying gasp ● Support DDM function Cable detection ● Support copper port cable detection NTP ● Network Time Protocol Syslog/Debug ● Syslog send to three servers Configuration import/export ● Support FTP/TFTP remote import/export ● Support USB import/export Dual partition management ● Support dual partition switching |
| Sicurezza |
ACL ■ IP Standard ACL ■ MAC extend ACL ■ IP extend ACL ■ IPv6 ACL QoS ■ Support QoS Class, remarking ■ Support SP, WRR queue scheduling ■ Ingress port-based rate-limit ■ Egress port-based rate-limit ■ Support policy-based QoS 802.1x ■ Port access control ■ Mac-address access control ■ RADIUS server IP source guard ■ IP Port/MAC binding ARP-check ■ Support ARP-check and ARP packet filtering for illegal users Access control ■ Support Telnet/SSH/HTTP/HTTPS user access control Port-security |
| Miscellaneous. | |
| Grado | Industriale |
| PoE supportato | No |
| Gestibile | Sì |
| Senza ventola | Sì |
| Performance 2. | |
| Capacità di commutazione | 112 Gbps |
| Physical Specifications. | |
| Peso del prodotto (kg) | 1.79 |
| Dimensioni (L x P x A) | 96 x 115 x 158 mm |
| System Specifications. | |
| Data Rate. | 10Gbps, 1Gbps |
| Alimentatore incluso | No |
| Ingresso di alimentazione | 12-75VDC (Redundant power input) |
| Consumo di energia | 27W (Full loading) |
| MTBF | 200,000 hours |
| Configurazione della porta | 8x 10/100/1000 Ethernet ports, 8x 100/1000 SFP ports, 4x 1G/2.5G/10G SFP+ ports |
| Grado IP | IP40 |
| Standard |
● IEEE 802.3 10Base-T Ethernet ● IEEE 802.3u 100Base-TX Ethernet ● IEEE 802.3ab 1000Base-T Ethernet ● IEEE 802.3z 1000Base-X Ethernet ● IEEE802.3x Flow Control and Back Pressure ● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.1w Rapid Spanning Tree Protocol ● IEEE 802.1Q VLAN ● ITU-T G.8032 ERPS ● IEEE 802.1X Port Authentication Network Control ● IEEE 802.1ab LLDP ● IEEE 802.3ad LACP |
| Rumore acustico (dB) | 0 |
| Montaggio | Montaggio su guida DIN |
| Tabella indirizzi MAC | 16 K |
| Cornice Jumbo (KB) | 10 |
| Indicatori |
● SYS (System status indicator) ● P1/ P2 (Power1/2 indicator) ● USB (USB status indicator) ● Ring (Ring network indicator) |
| Buffer di pacchetti | 12 Mbit |
| Backplane (Gbps) | 112 |
| Others. | |
| Approvazione e conformità |
● CE ● UKCA ● FCC Part 17, Subpart B Class B ● RoHS |
| Umidità di esercizio | 10% RH ~ 90% RH |
| Temperatura di esercizio | -40°C ~ 80°C |
| Umidità di stoccaggio | 5% RH ~ 95% RH |
| Temperatura di stoccaggio | -40°C ~ 85°C |
| Contenuto della confezione |
● IGX-2072 ● Console Cable ● Power Terminal Block ● Din-rail Mount Kit ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Colore | Nero |
| EAN | 4015867239285 |
| Numero di modello | IGX-2072 |
