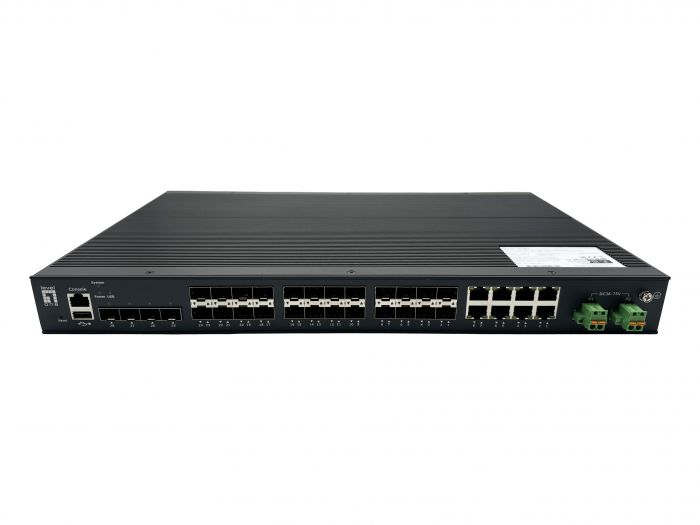

IGX-2872 Switch Industrial Gestionable L2 Plus de 28 Puertos, 8 x SFP/RJ45 Combo, 16 x puertos SFP 100/1000BASE-X, 4 x puertos SFP+ de 1/2.5/10GbE, Montaje en Rack de 19", fuente de alimentación redundante 1AC/2DC, -40°C a 80°C

Número de modelo

IGX-2872

SKU

55055217101

Ofrece conectividad integral con 8 SFP/RJ45 Combo, 16 puertos SFP 100/1000Base-X y 4 puertos SFP+ 1G/2.5G/10GBase-X.

Garantiza un funcionamiento confiable con fuente de alimentación redundante 1AC/2DC, protección avanzada contra sobretensiones (6KV) y protección ESD (Air-15kV, Contact-8kV).

Diseñado para entornos hostiles con carcasa IP40 Din-rail sin ventilador y amplio rango de temperatura de funcionamiento (-40°C a +80°C).

Ofrece un funcionamiento ininterrumpido a través del protocolo G.8032 ERPS con un tiempo de recuperación de <20 ms.

Admite funciones avanzadas de Capa 2 que incluyen VLAN, STP/RSTP/MSTP, Agregación de enlaces, QoS e IGMP Snooping para un rendimiento de red optimizado.

Ofrece opciones de administración sólidas a través de interfaces Web, SNMP, CLI, Telnet y SSH.

Proporciona seguridad mejorada con autenticación 802.1X, aislamiento de puertos y ACL.

Permite el enrutamiento de red avanzado con enrutamiento estático IPv4/IPv6 y servidor DHCP.

Detalles

The LevelOne IGX-2872 is a rugged L2+ managed industrial Ethernet switch built for demanding environments. Designed to excel in industrial automation, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time. Its wide operating temperature range, AC/DC Redundant power supply, and fanless design ensure uninterrupted operation in harsh industrial conditions. Ideal for large-scale industrial networks, the IGX-2872 provides the foundation for efficient and secure operations.

Specifications

Más Información
Logistics Data.
Código del Sistema Armonizado (SA)	851762
Código aduanero del producto (TARIC)	8517620000
Power.
Redundancia de alimentación	Dual Power Supplies
Features 1.
Características	Layer 2 functions Port aggregation ■ GE port aggregation ■ 2.5GE aggregation ■ 10GE aggregation ■ Static aggregation ■ LACP dynamic aggregation ■ Up to 64 aggregation groups and up to 8 ports per group Port features ■ Support IEEE802.3x flow control ■ Support interface counters ■ Support port isolation ■ Port mirroring ( One-to-One, Many-to-One) ■ Support loop detection(Port-based; VLAN-based) ■ Support broadcast storm suppression(broadcast; unknown multicast; unknown unicast) Mac-address table management ■ Static Mac-address management ■ Dynamic Mac-address Management ■ Filtering Mac-address ■ MAC limit based on port and VLAN ■ MAC flapping based on port and VLAN GVRP ■ Normal mode ■ Fixed mode ■ Forbidden mode VLAN ■ Support access mode ■ Support trunk mode ■ Support hybrid mode VLAN classification ■ Mac Based VLAN ■ IP Based VLAN ■ Protocol Based VLAN QinQ ■ Port-based QinQ ■ VLAN-based QinQ(VLAN-stacking; VLAN-mapping) ■ Flow-based QinQ Ring network protocol ■ Support IEEE802.1D-STP ■ Support IEEE802.1W-RSTP ■ Support IEEE802.1S-MSTP ■ Support G.8032 ERPS protocol，single ring, sub Ring and major ring Recovery time ≤20ms Multicast functions ■ IGMP snooping ■ Group address LLDP (Link Layer Discovery Protocol) Application Protocol Functions DHCP Snooping ■ DHCP snooping trust port ■ Support remote-id/circuit-id configuration ■ DHCP option-82 DHCP client ■ Support DHCP client Telnet server ■ Support telnet server Telnet client ■ Support telnet client SSH server ■ Support SSH server TACACS ■ Support TACACS(the terminal access controller accesses the control system) sflow ■ Support network traffic analysis TFTP ■ Support TFTP Client Layer 3 functions ■ ARP table aging ■ DHCP server ■ IPv4 / IPv6 static routing
Gestión	User Management ● Support password protection ● Support user authorization management SNMP ● Supporting SNMP V1/V2C/V3 version Web Management ● Support HTTP V1.1 ● Support HTTPS CLI management ● Console/Telnet command line management RMON ● Support RMON(Remote Monitoring) alarm Firmware upgrade Fault Detection ● Ping/Tracerout ● Dying gasp ● Support DDM function Cable detection ● Support copper port cable detection NTP ● Network Time Protocol Syslog/Debug ● Syslog send to three servers Configuration import/export ● Support FTP/TFTP remote import/export ● Support USB import/export Dual partition management ● Support dual partition switching
Seguridad	ACL ■ IP Standard ACL ■ MAC extend ACL ■ IP extend ACL ■ IPv6 ACL QoS ■ Support QoS Class, remarking ■ Support SP, WRR queue scheduling ■ Ingress port-based rate-limit ■ Egress port-based rate-limit ■ Support policy-based QoS 802.1x ■ Port access control ■ Mac-address access control ■ RADIUS server IP source guard ■ IP Port/MAC binding ARP-check ■ Support ARP-check and ARP packet filtering for illegal users Access control ■ Support Telnet/SSH/HTTP/HTTPS user access control Port-security
Miscellaneous.
Grado	Industrial
Soporta PoE	No
Manejable	Sí
Sin ventilador	Sí
Puertos concurrentes	28,00 Total
System Specifications.
Data Rate.	10Gbps
Fuente de alimentación incluida	Sí
Entrada de alimentación	● 1AC: 100-240 VAC, 50-60 Hz ● 2DC: 36-75VDC
Consumo de energía	40 W
Configuración de puertos	4 x 1.25/2.5/10GbE SFP+, 16 x 155M/1.25GbE SFP, 8 x Gigabit SFP/RJ45 Combo
Grado IP	IP40
Estándar	● IEEE 802.3 10Base-T Ethernet ● IEEE 802.3u 100Base-TX Ethernet ● IEEE 802.3ab 1000Base-T Ethernet ● IEEE 802.3z 1000Base-X Ethernet ● IEEE802.3x Flow Control and Back Pressure ● IEEE 802.1D Spanning Tree Protocol ● IEEE 802.1w Rapid Spanning Tree Protocol ● IEEE 802.1Q VLAN ● ITU-T G.8032 ERPS ● IEEE 802.1X Port Authentication Network Control ● IEEE 802.1ab LLDP ● IEEE 802.3ad LACP
Ruido acústico (dB)	0
Monte	Montaje en bastidor de 19, Soporte de sobremesa
Tabla de direcciones MAC	16 K
Marco jumbo (KB)	10
Indicadores	● System ● Power ● USB ● Link/Act
Búfer de paquetes	12 Mbit
Placa base (Gbps)	128 Gbps
Others.
Aprobación y conformidad	● FCC Part 15 Subpart B ● CE ● EN IEC 62368-1 ● EN 55032 ● EN 55035 ● EN 61000-3-2/3 ● RoHS
Humedad de funcionamiento	10% RH ~ 90% RH
Temperatura de funcionamiento	-40°C ~ 80°C
Humedad de almacenamiento	5% HR ~ 95% HR
Temperatura de almacenamiento	-40°C ~ 85°C
Contenido del paquete	● IGX-2872 ● Power Cord (2pcs) ● Power Terminal Block ● Console Cable ● 19" Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity
General.
Color	Negro
EAN	4015867241646
Número de modelo	IGX-2872
Physical Specifications.
Peso del producto (kg)	4.1
Dimensiones (An x Pr x Al)	440 x 280 x 45 mm
