GEP-1011, Switch Gigabit de 10 puertos, 8 Puertos PoE, 1 x Gigabit SFP, 1 x Uplink Gigabit, 120W

Número de modelo
GEP-1011
SKU
52092917101
  • IEEE 802.3af/at Standard
  • Total PoE power budget: 120W
  • PoE Watchdog to Auto-Detect and Restart Cameras that Do not Respond
  • 1x 1000Base-X SFP port
  • 6KV Surge Protection to Improve Reliability in Harsh Environment
  • Support Wall mount installation.

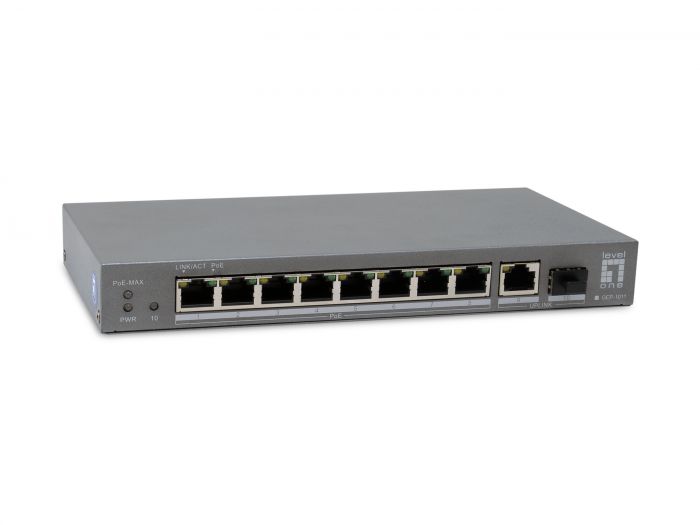

  • LevelOne GEP-1011 – 10-Port Gigabit PoE Switch with SFP Uplink
    The LevelOne GEP-1011 is a high-performance Gigabit Ethernet switch featuring 9 RJ-45 10/100/1000 Mbps ports and 1 SFP uplink port. Designed for growing network environments, it is ideal for medium to large workgroups where high bandwidth and expanding user demands are expected.

    The switch includes 8 PoE-enabled (PSE) ports, delivering both power and data over a single Ethernet cable. This eliminates the need for separate power supplies, allowing flexible deployment of PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones—especially in areas with limited access to power outlets.

    Compact in size, the GEP-1011 is optimized for installations with space constraints while offering smooth network migration and simple scalability. It supports IEEE 802.3af/at standards and automatically detects connected PoE devices, ensuring safe and efficient power delivery.

    By simplifying cabling and reducing installation complexity, the GEP-1011 provides a cost-effective and reliable solution for upgrading to a PoE-enabled Gigabit network infrastructure.

    Más Información
    Logistics Data.
    Código del Sistema Armonizado (SA) 846359
    Código aduanero del producto (TARIC) 846359
    General.
    Color Gris
    EAN 4015867241110
    Número de modelo GEP-1011
    Miscellaneous.
    Grado Comercial
    Soporta PoE
    Manejable No
    Sin ventilador
    Puertos concurrentes 10,00 Total
    Presupuesto de potencia PoE 120,00 Total
    Physical Specifications.
    Peso del producto (kg) 0.6
    Dimensiones (An x Pr x Al) 217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')
    System Specifications.
    Data Rate. 1Gbps
    Normas IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3u 100-BASE-TX, Fast Ethernet, IEEE 802.3ab 1000BASE-T, Gigabit Ethernet, IEEE 802.3x Full-duplex Flow Control, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+), IEEE802.3z 1000Base-SX/LX
    Fuente de alimentación incluida
    Entrada de alimentación VDC 48/2.5A
    Consumo de energía 10W Without PoE
    Tasa de reenvío de paquetes 14.88 Mpps
    Configuración de puertos 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit SFP port
    Asignación de patillas y polaridad 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-)
    Monte Montaje en pared
    Tabla de direcciones MAC 4K
    Indicadores Link/PoE
    Búfer de paquetes 1.5 Mbits
    Placa base (Gbps) 20
    Others.
    Aprobación y conformidad CE/FCC/UL
    Humedad de funcionamiento 5% HR ~ 95% HR
    Temperatura de funcionamiento 0°C ~ 40°C
    Humedad de almacenamiento 5% HR ~ 95% HR
    Temperatura de almacenamiento -45°C ~ 85°C
    Contenido del paquete Power Cord
    Power adapter
    Quick Installation Guide
    Declaration of Conformity
