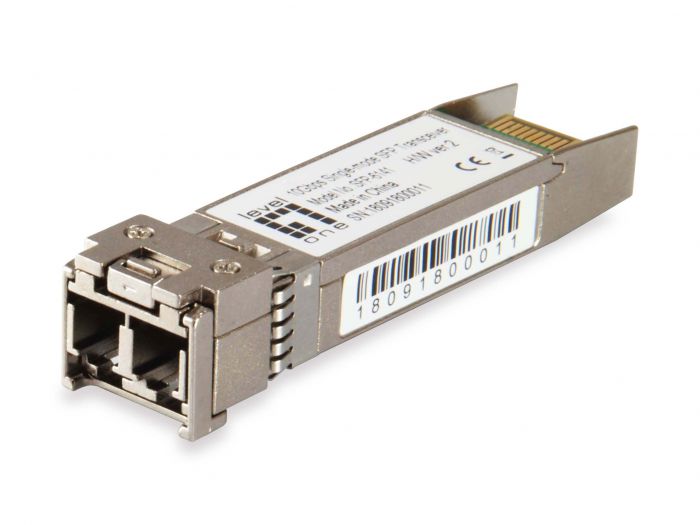

SFP-6141 10Gbps Single-mode SFP+ Transceiver, 40km, 1550nm

Model Number.
SFP-6141
SKU
551125
  • Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring
  • Provides duplex LC connector
  • Hot-swappable providing non-stop service
  • RoHS compliant and Lead Free
  • Compatible with SFP Multi-Sourcing Agreement (MSA) standards
    • LevelOne SFP-6141 SFP-Plus Transceiver is hot-swappable multi-purpose optical module supports 10Gigabit Ethernet applications across most switching and routing platforms. The transceiver supports to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 40km (SMF), ideally suited for data centers, enterprise and storage area networks. In addition, the LevelOne SFP-6141 adopts the most advanced technology to minimize the power consumption in ultra-high speed.
    More Information
    Port Configuration
    10-Gigabit single-mode LC 1
    Logistics Data.
    Harmonized System (HS) code. 851762
    Customs product code (TARIC). 8517620000
    General.
    Color. Silver
    EAN. 4015867182482
    Model Number. SFP-6141
    Features 1.
    Features. • Multi-rate links up to 40km of G.652.
    • Built-in dual CDR
    • Hot-swappable
    • 9/125μm Single-mode Fiber
    • Duplex LC Connector
    • SFP MSA SFF-8472 SFF-8431 SFF-8432 Compliant
    Miscellaneous.
    Fiber Optical Mode. Single-Mode
    Transceiver Type. SFP+
    Grade. Commercial
    Performance 2.
    Receiver sensitivity. -15.8dBm
    Physical Specifications.
    Dimensions (W x D x H). 13.7 x 57 x 12 mm
    Product weight (kg). 0,02
    System Specifications.
    Data rate. 9.95 to 11.3Gb/s
    Link power budget (dB). 14.8dB
    Optical transmission power (dBm). -1 to 4dBm (TX Power) , -16 to -1dBm (RX Power)
    Power consumption. 2.0W(0~70°C), 2.3W(0~85°C)
    Power input. 3.47V / 600mA
    Standard. IEEE 802.3ae 10GBASE-ER
    Wavelength (nm). 1550
    Others.
    Approval and Compliance. • ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015
    • ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2
    • Immunity compatible with IEC 61000-4-3
    • EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B
    • Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2
    • ROHS compliant with ROHS 2 (2011/65/EU)
    Operating humidity. 0% RH ~ 85% RH
    Operating temperature. 0°C ~ 70°C
    Storage temperature. -40°C ~ 85°C
    Package Contents. SFP-6141,
    Quick Installation Guide
    Qig download (106.52 kB)
    Ecdoc download (136.51 kB)
