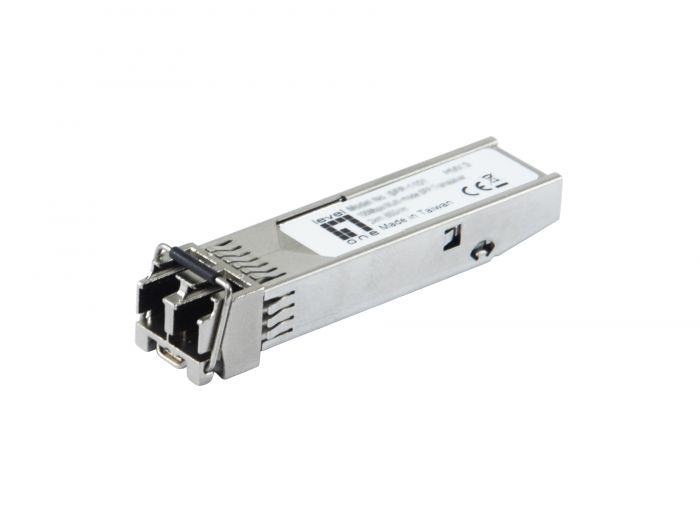

SFP-2200 155Mbps Multi-mode Industrial SFP Transceiver, 2km, 1300nm, -40°C to 85°C

Model Number.
SFP-2200
SKU
55111807301
  • Data rates of up to 155Mbps
  • 100BASE-FX Multi-mode fiber for the link up to 2km
  • 1300nm FP transmitter, PIN-TIA photo-detector
  • Provides duplex LC connector
  • Hot-swappable
  • Compatible with SFP Multi-Sourcing Agreement (MSA) standards
  • Supports Digital Diagnostics Monitoring (DDM) for easy status monitoring
  • Industrial operating temperature range: -40℃ to 85℃

    • The levelOne SFP-2200 is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with Fast Ethernet, it provides up to 155 Mbps data transfer rate on a single duplex fiber core. For use with 50 and 125 micron fiber cables, it can reach a distance of up to 2 km. The SFP-2200 transceiver operates using a wavelength of 1300nm with a Fabry-Perot (FP) Laser Diode light source and has an LC port.

    This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.

    More Information
    Logistics Data.
    Harmonized System (HS) code. 851762
    Customs product code (TARIC). 8517620000
    General.
    Color. Silver
    EAN. 4015867240199
    Model Number. SFP-2200
    Features 1.
    Features. • DDM (Digital Diagnostics Monitoring)
    • Hot-swappable
    Miscellaneous.
    Fiber Optical Mode. Multi-Mode
    Transceiver Type. SFP
    Grade. Industrial
    Performance 2.
    Receiver sensitivity. -32 dBm
    Physical Specifications.
    Dimensions (W x D x H). 56.4 x 13.4 x 10.97 mm
    Product weight (kg). 0.015 kg
    System Specifications.
    Data rate. 155 Mbps
    Optical transmission power (dBm). -20 to -8 dBm
    Power consumption. 1000 mW
    Wavelength (nm). 1300 nm
    Others.
    Approval and Compliance. • CE
    • CB
    • FDA 21 CFR 1040.10 and 1040.11
    • FCC 47 CFR PART 15 SUBPART B
    • TUV
    • UL
    • RoHS
    Operating humidity. 5% RH ~ 85% RH
    Operating temperature. -40°C ~ 85°C
    Storage humidity. 5% RH ~ 85% RH
    Storage temperature. -40°C ~ 85°C
    Package Contents. • SFP-2200
    • Quick Installation Guide
    • Declaration of Conformity
    Qig download (902.58 kB)
    Ecdoc download (73.40 kB)
    Pictures download (685.10 kB)
