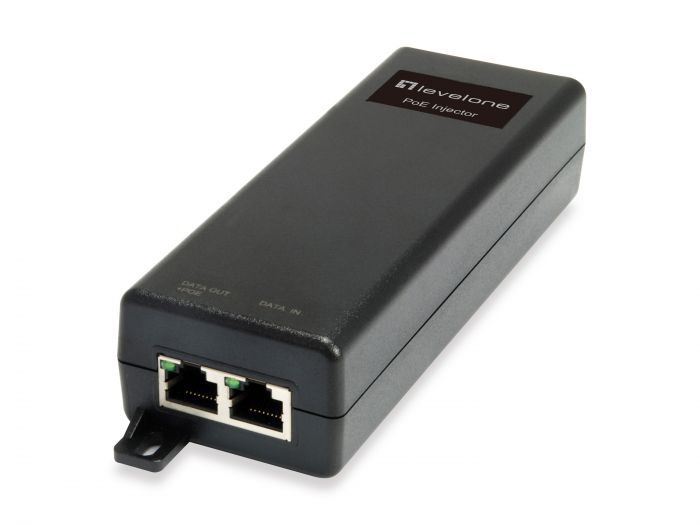

POI-2002, PoE Injector, PSE 15.4W

Model Number.
POI-2002
SKU
552039
  • Remove the need for a bulky power adapter and power line
  • Delivers power and data to equipment via a single Ethernet cable
  • Simple Plug and Play installation
  • Remote power feeding up to 100m
  • Surge protected to enhance safety
  • Unique interlocking feature for easy installation
  • Total PoE power budget: 15.4W, up to 15.4W per port
  • 6KV surge protection level on each port
  • The LevelOne POI-2002 is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. It is equipped with 6KV PoE Surge Protection and generating up to 15.4W and the data that comes from a non-PoE switch are merged together and then transmitted to the 802.3af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches. Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables, therefore these devices may be installed in hard-to-reach areas like ceilings where there are no any outlets or electrical wiring nearby.
    More Information
    Port Configuration
    Gigabit RJ45 2
    802.3af PoE 1
    Logistics Data.
    Harmonized System (HS) code. 851762
    Customs product code (TARIC). 8517620000
    General.
    Color. Black
    EAN. 4015867160695
    Model Number. POI-2002
    Miscellaneous.
    Injector Port Type. Single Port
    Grade. Commercial
    Physical Specifications.
    Dimensions (W x D x H). 143 x 51 x 38 mm
    Product weight (kg). 0,35
    System Specifications.
    Data rate. 10/100Mbps
    Data Rate. 100Mbps
    Indicators. Power, PoE
    Mount. Wall mount
    Pin assignment and polarity. 4/5 (+), 7/8 (-)
    Power Output. 18W
    Power supply included. Yes
    Standard. IEEE 802.3 10Base-T, Ethernet
    IEEE 802.3u 100Base-TX, Fast Ethernet
    Others.
    Approval and Compliance. CE/FCC/UL
    Operating humidity. 5% RH ~ 95% RH
    Operating temperature. -20°C ~ 60°C
    Package Contents. POI-2002
    Quick Installation Guide
    Power cord
    Qig download (100.71 kB)
    Ecdoc download (250.96 kB)
