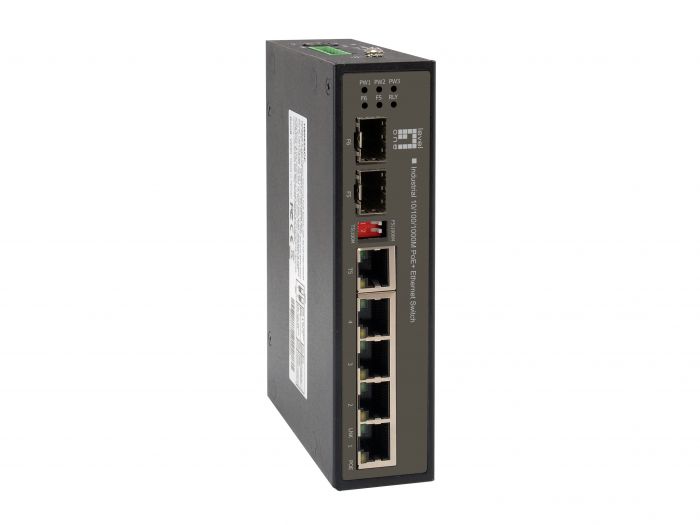

IES-0610 6-Port Gigabit PoE Industrial Switch, 802.3at/af PoE, 4 PoE Outputs, 1 x SFP, 1 x SFP/RJ45 Combo, -40°C to 75°C, DIN-Rail, 126W

Model Number.

IES-0610

SKU

55506307

4 Gigabit PoE ports, 1 Gigabit SFP slot and 1 Gigabit RJ45/SFP Combo port

Total PoE power budget: 126W, up to 30W per port

-40°C to 75°C operating temperature range

IP30 metal case

Redundant power inputs with Terminal Block

Details

LevelOne IES-0610 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.

Specifications

More Information
General Information
Knob	DIP1 On : Port 5 supports TX Copper DIP1 Off : Port 5 supports SFP (Default) DIP2 : Reserved
Logistics Data.
Harmonized System (HS) code.	851762
Customs product code (TARIC).	8517620000
Power.
Power Redundancy.	Dual Power Input
General.
Color.	Black
EAN.	4015867188507
Model Number.	IES-0610
Miscellaneous.
Grade.	Industrial
PoE Supported.	Yes
Manageable.	No
Fanless.	Yes
Concurrent ports.	Total 6.00
PoE Power Budget.	Total 126.00
Physical Specifications.
Product weight (kg).	0,72
Dimensions (W x D x H).	40 x 105 x 38 mm
System Specifications.
Power supply.	Optional, 48-55 VDC
Data Rate.	1Gbps
Power supply included.	No
Power input.	48-55 VDC Dual power input capable (Redundancy) Protection: Polarity Reversal Overload Current
Power consumption.	6 watts (with no PoE PD attached) 126 watts (with full PoE PD attached)
MTBF.	510,304 hrs
Packet forwarding rate.	1000Mbps port - 1,488,000pps 100Mbps port - 148,000pps 10Mbps port - 14,880pps
Port Configuration.	510/100/1000 Mbps RJ-45, 4-Port (PoE) , 2 SFP 1000Mbps
Standard.	IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+)
Power Output.	Alarm Relay Output 1A @ 24VDC
Mount.	DIN rail mount
Flash memory size.	1024
MAC address table.	1K
Jumbo frame (KB).	10
Indicators.	PW1 (Power 1) : Green / PW2 (Power 2) : Green / ERR (Fault) : Amber LNK (RJ45) : Green SPD : Amber (1000) / Green (100) / Off (10) SFP : Green (Link / Active)
Dip switch.	DIP1 On : Port 5 supports TX Copper DIP1 Off : Port 5 supports SFP (Default) DIP2 : Reserved
Backplane (Gbps).	12
Others.
Approval and Compliance.	UL 60950-1 LVD(EN60950-1) FCC Part 15 Subpart B Class A,CISPR32 CE EN 55032/24 IEC 61000-4-2 ESD: Contact:6KV; Air:8KV IEC 61000-4-4 EFT: Power:2KV; Signal:2KV IEC 61000-4-5 Surge: Power:2KV; Signal:2KV EN 60068-2-6 EN 60068-2-27 EN 60068-2-32 IEC EN 62368-1 EN 55022: 2010 +AC: 2011 Class A EN 55024: 2010 EN 55032/24
Operating humidity.	5% RH ~ 95% RH
Operating temperature.	-40°C ~ 75°C
Storage humidity.	5% RH ~ 95% RH
Storage temperature.	-40°C ~ 85°C
Package Contents.	IES-0610 Quick Installation Guide
