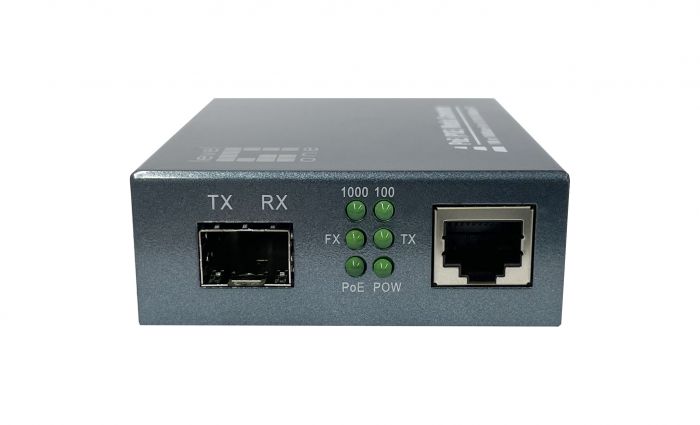

GVT-2012 RJ45 to SFP Gigabit Media Converter, PoE PSE

Model Number.

GVT-2012

SKU

54070103

Transfers data from 10/100/1000Base-T copper to fiber interfaces

IEEE 802.3af/at PoE PSE with 30W power budget

9K jumbo frames to increase data transfer rates

1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX

IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

IEEE 802.3z Gigabit Ethernet compliant

Details

The GVT-2012 is a Single-Port, End-Span IEEE 802.3at High Power over Ethernet converter designed specifically to satisfy the growing demand for higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The GVT-2012 is High Power over Ethernet converter series is an ideal solution to delivering data and power to network devices directly via the RJ45 Port interface without the need for installing extra power outlets and electrical cabling.

Specifications

More Information
Logistics Data.
Harmonized System (HS) code.	851762
Customs product code (TARIC).	8517620000
General.
Color.	Grey
EAN.	4015867207345
Model Number.	GVT-2012
Features 1.
Features.	● Media conversion between 10/100/1000Base-T and 1000Base-SX/LX ● 10/100/1000M media converter with SFP slot or SC fiber transeiver ● Supporting auto-sensing full-duplex and half-duplex operation ● Supporting auto-sensation of MDI/MDI-X, facilitating system commissioning and installation ● Store-and-Forward mechanism ● Support being powered by PoE via UTP cable and AC/DC adaptor
Miscellaneous.
Fiber Optical Mode.	Both
Media Interface.	RJ45 to SFP
PoE Supported.	Yes
Manageable.	No
Grade.	Commercial
Physical Specifications.
Dimensions (W x D x H).	70 x 94 x 26 mm
Product weight (kg).	0.2
System Specifications.
Data Rate.	1Gbps
Indicators.	● PWR (power supply) ● FX LINK (optical link action) ● TP 1000 (TP cable rate1000M) ● TP 100 (TP cable rate 100M) ● TP LINK/ACT (TP cable packet forwarding action) ● FDX (TP full duplex operation)
Jumbo frame (KB).	9
Mount.	Desk mount
MTBF.	30000 hours
Power consumption.	DC 48V : 40 W (full loading)
Power input.	DC IN : 48V, 2A
Power Output.	● PoE 48V(802.3at) with 30W power budget ● Pin assignment and polarity : 1/2(+), 3/6(-)
Power supply.	100-240 V, 50-60 Hz 1.6A (Power adapter with power cord )
Power supply included.	Yes
Standard.	● IEEE802.3 10Base-T Ethernet ● IEEE802.3u 100Base-TX Fast Ethernet ● IEEE802.3ab 1000Base-T ● IEEE802.3z 1000Base-SX/LX Gigabit Ethernet ● IEEE 802.3x flow control ● IEEE 802.3at POE+ ● IEEE 802.3af POE
Transmission Method.	Store and forward
Wavelength (nm).	Depend on SFP fiber optical transceiver
Others.
Approval and Compliance.	● CE ● RoHS
Operating humidity.	5% RH ~ 90% RH
Operating temperature.	-10°C ~ 60°C
Package Contents.	● GVT-2012 ● Power adapter with power cord ● Quick Installation Guide ● Declaration of Conformity
