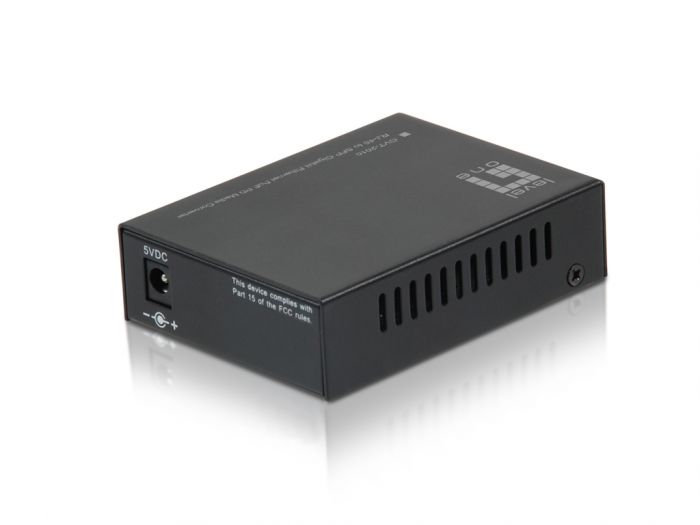

GVT-2010 RJ-45 to SFP Gigabit Ethernet PoE PD

Model Number.
GVT-2010
SKU
54068807
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Transfers data from 10/100/1000Base-T copper to fiber interfaces
  • Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
  • Supports the transmission of extra-long packets up to 1.6KB
  • 9K jumbo frames to increase data transfer rates
  • -10°C to 55°C operating temperature range
  • Supports low-time lag transmission
    • GVT-2010 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 100 km via fiber optical cable.GVT-2010 supports 802.3at/af POE-PD function. It can draw the power via UTP cable connect to a POE-PSE switch or mid-span injector. This function makes the GVT-2010 ideal for remote areas of a network without power outlests
    More Information
    Logistics Data.
    Harmonized System (HS) code. 851762
    Customs product code (TARIC). 8517620000
    General.
    Color. Black
    EAN. 4015867195192
    Model Number. GVT-2010
    Features 1.
    Features. 1. Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3x flow control, IEEE 802.3at POE+, IEEE 802.3af POE
    2.Media conversion between 10/100/1000Base-T and 1000Base-SX/LX
    3.10/100/1000M media converter with SFP slot or SC fiber transeiver
    4.Supporting auto-sensing full-duplex and half-duplex operation
    5.Supporting auto-sensation of MDI/MDI-X, facilitating system commissioning and installation
    6.Support jumbo frame up to 9K
    7.Store-and-Forward mechanism
    8.Supporting LFP function
    9.Support being powered by PoE via UTP cable and AC/DC adaptor
    Miscellaneous.
    Fiber Optical Mode. Both
    Media Interface. RJ45 to SFP
    PoE Supported. Yes
    Manageable. No
    Grade. Commercial
    Physical Specifications.
    Dimensions (W x D x H). 94 x 71 x 26 mm
    Product weight (kg). 0,22
    System Specifications.
    Data Rate. 1Gbps
    Indicators. PWR (power supply),
    FX LINK (optical link action)
    TP 1000 (TP cable rate1000M),
    TP 100 (TP cable rate 100M)
    TP LINK/ACT (TP cable packet forwarding action),
    FDX (TP full duplex operation)
    MTBF. 30000 hours
    Power supply included. No
    Standard. IEEE802.3 10Base-T Ethernet,
    IEEE802.3u 100Base-TX Fast Ethernet,
    IEEE802.3ab 1000Base-T ,
    IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,
    IEEE 802.3x flow control,
    IEEE 802.3at POE+,
    IEEE 802.3af POE
    Transmission Method. Store and forward
    Wavelength (nm). Depend on SFP fiber optical transceiver
    Others.
    Operating humidity. 5% RH ~ 90% RH
    Operating temperature. -10°C ~ 60°C
    Package Contents. GVT-2010
    Bedienungsanleitung
    Qig download (210.93 kB)
    Ecdoc download (154.50 kB)
    Manual download (203.90 kB)
