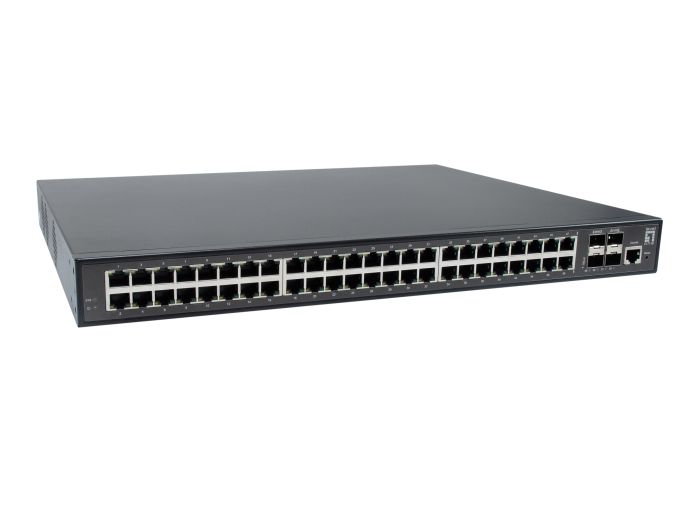

GTL-5291 52-Port L3 Managed Gigabit Switch, 48 x Gigabit RJ45, 4 x 10G SFP+ ports

Model Number.

GTL-5291

SKU

57082403101

48 Gigabit Ethernet ports and 4 10-Gigabit SFP+ slots.

Supports L3 management, such as OSPF, RIP, QoS, VLAN, MSTP, Multi-broadcast, ports management.

6KV surge protection, 6KV contact / 8KV air ESD protection.

Supports working temperature -10℃~50℃.

Details

The LevelOne GTL-5291 includes high-performance Gigabit Ethernet Layer3 switches featuring 52 ports; 48 10/100/1000BASE-T ports, 4 10G SFP+ ports, Supports L3 management, such as OSPF, RIP, QoS, VLAN, MSTP, Multi-brocast, ports management. The switch is ideal for high-performance server aggregations, such as enterprise data centers, where it can connect high-end or network-attached file servers through fiber ports. It can also deployed as a backbone upgrade, or to provide Gigabit-to-the-desktop for power users. This switch is packed with features and is a cost-effective solution that brings continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.

Specifications

More Information
Logistics Data.
Harmonized System (HS) code.	851762
Customs product code (TARIC).	8517620000
General.
Color.	Black
EAN.	4015867227961
Model Number.	GTL-5291
Features 1.
Features.	Port configuration ● Auto-negotiation ● Flow Control (Support Head-of-line blocking) ● Port Mirror ● Traffic statistics Link Aggregation ● Static link aggregation LACP ● Algorithm based on Source/Destination MAC ● Algorithm based on Source/Destination IP ● 8 groups ● 8 ports per group MAC Table ● Aging Time ● Static MAC address ● Dynamic MAC address management VLAN ● 4K Active VLANs ● 4K VID ● 802.1Q Tag VLAN ● Port VLAN ● Protocol VLAN ● MAC VLAN ● Management VLAN ● Voice VLAN ● Q-in-Q ● Private VLAN ● GARP/GVRP ACL ● 64 ACLs ● L2, L3 e L4 ● Time-based ACL Spanning tree ● 802.1D Spanning Tree Protocol (STP) ● 802.1w Rapid Spanning Tree Protocol (RSTP) ● 802.1s Multiple Spanning Tree Protocol (MSTP) ● Loop Guard ● Root Guard ● TC-BPDU Guard ● BPDU Guard ● BPDU Filter Multicast ● 256 groups ● GMP v1/v2/v3 ● Fast Leave ● Multicast VLAN ● Static Multicast ● Multicast Filter ● IGMP Statistics ● MLD Snooping QOS ● 4 priority queues ● CoS port-based ● CoS 802.1p-based ● CoS DSCP-based ● Scheduling algorithms SP, WRR, SP+WRR ● Storm Control (Broadcast, Multicast, Unknown Unicast) ● Bandwidth control per port ● Head-of-line blocking
Management.	● SNMP v1/v2c/v3 ● VRRP ● RMON 4 grupos ● WEB (HTTP/HTTPS) ● CLI (Telnet, Console, SSHv1/v2) ● Firmware upgrade via console/web/TFTP ● Configuration Backup/Reload ● All possible configurations in the CLI must exist in the WEB interface ● LLDP ● System Log(Syslog) Information
Security.	● Port Security ● MAC address filter ● ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries ● ARP Protection ● DoS (Denial of Service) ● Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type ● 802.1x Authentication (port-based e MAC-based) TACACS/TACACS+ Authentication ● RADIUS Authentication ● DHCP Filter ● Guest VLAN ● SSLv2/SSLv3/TLSv1 ● SSHv1/SSHv2 ● Restriction of WEB access based on: IP Address, And. MAC and Port ● Port Isolation ● Local User Name Password Authentication (2 levels) ● Loopback detection
Energy Saving.	IEEE 802.3az (Energy Efficient Ethernet)
Miscellaneous.
Grade.	Commercial
PoE Supported.	No
Manageable.	Yes
Fanless.	No
Concurrent ports.	Total 52.00
Physical Specifications.
Product weight (kg).	6
Dimensions (W x D x H).	442 x 320 x 44 mm
System Specifications.
Power supply.	100-240 VAC, 50-60 Hz
Data Rate.	10Gbps, 1Gbps
Power supply included.	Yes
Power consumption.	40 W
Port Configuration.	● 48x 10/100/1000 Mbps RJ-45 copper downlink ports ● 4x 1/2.5/10 Gbps SFP+ Uplink Ports
Standard.	● IEEE 10BASE-T (IEEE 802.3) ● IEEE 100BASE-TX (IEEE 802.3u) ● IEEE 1000BASE-T (IEEE 802.3ab) ● IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) Transceivers ● IEEE802.3x flow control ● IEEE 802.1Q VLANs ● IEEE 802.1D Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP)
Mount.	19" rack mount, Desk mount
Flash memory size.	512 MB
RAM size.	512 MB
MAC address table.	32 K
Jumbo frame (KB).	9
Indicators.	● Power ● Link/Active
Packet buffer.	16 Mbits
Backplane (Gbps).	176
Others.
Approval and Compliance.	● CE ● RoHS
Operating humidity.	10% RH ~ 90% RH
Operating temperature.	-10°C ~ 50°C
Storage humidity.	10% RH ~ 90% RH
Storage temperature.	-40°C ~ 85°C
Package Contents.	● GTL-5291 ● Power cord ● Console Cable ● 19" Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity
