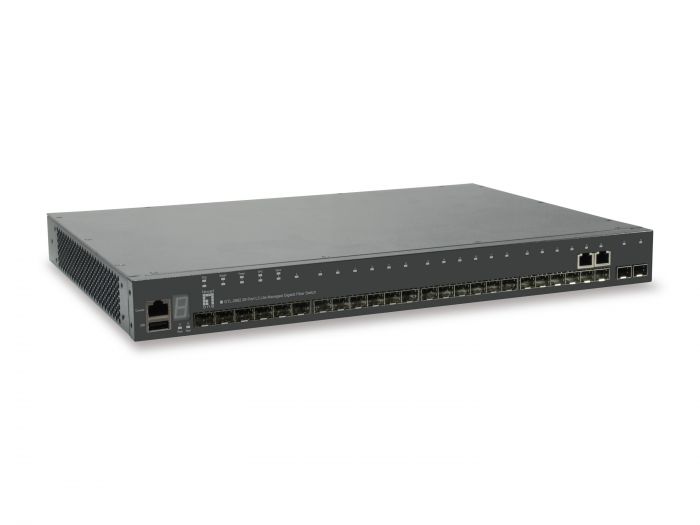

GTL-2882, KILBY 28-Port Stackable L3 Lite Managed Gigabit Fiber Optic Switch, 2 x Gigabit SFP/RJ45 Combo, 2 x 10G SFP+, 1 x 10G Module Slot

Model Number.

GTL-2882

SKU

57081003

Supports up to 8 switches in one stack

Dynamic ARP Inspection (DAI) protects switches against ARP spoofing

Supports Operations, Administration, and Maintenance (OAM) mechanisms

Ethernet Ring Protection Switching (ERPS) for Ethernet ring topologies with sub-50 ms failover capabilities

IEEE 802.1d/w Spanning Tree Protocol (STP) and port mirroring

IEEE 802.3ad LACP for auto port aggregation

Supports port-based VLAN, IEEE 802.1Q VLAN Tagging

QoS control for traffic prioritization and bandwidth management

Supports IPv4/IPv6 network operation

Virtual stacking supports up to 36 switches in a single logical stack for unified management, monitoring and configuration

Details

The GTL-2882 series includes high-performance Gigabit Ethernet Layer3 Lite switches featuring 28 or 52 ports; 24 /48 10/100/1000BASE-T ports, two 10G SFP+ ports, and one 10G expansion slot for a dual-port module. The switch is ideal for high-performance server aggregations, such as enterprise data centers, where it can connect high-end or network-attached file servers through fiber ports. It can also deployed as a backbone upgrade, or to provide Gigabit-to-the-desktop for power users. This switch is packed with features and is a cost-effective solution that brings continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.

Specifications

More Information
Port Configuration
Console RJ45	1
Gigabit RJ45/SFP combo	2
Gigabit SFP	22
10-Gigabit module slot	1
Logistics Data.
Harmonized System (HS) code.	851762
Customs product code (TARIC).	8517620000
General.
Color.	Black
EAN.	4015867198995
Model Number.	GTL-2882
Features 1.
Features.	OAM : IEEE 802.3ah Link IEEE 802.1ag Connectivity Fault Management (CFM) ITU-T Y.1731 performance and throughput management Stacking Features : IP Clustering up to 36 devices, bandwidth up to 20G Hardware Stacking up to 8 units, bandwidth up to 20G IPv4/IPv6 dual protocl stack G.8032 (ERPSv1/v2) VLANs: -Supports 4K IEEE 802.1Q VLANs - Port-based VLANs - GVRP/GARP - IEEE 802.1v Protocol-based VLANs - MAC-based VLANs - IP subnet-based VLANs - Private VLANs (Community) - Traffic Segmentation (port isolated) - Voice VLANs - VLAN trunking - VLAN translation L3 features: Multi-netting (CIDR) IPv4 Static Routes RIP v1/v2 ARP/Proxy ARPOAM : IEEE 802.3ah Link IEEE 802.1ag Connectivity Fault Management (CFM) ITU-T Y.1731 performance and throughput management Stacking Features : IP Clustering up to 36 devices, bandwidth up to 20G Hardware Stacking up to 8 units, bandwidth up to 20G IPv4/IPv6 dual protocl stack G.8032 (ERPSv1/v2) VLANs: -Supports 4K IEEE 802.1Q VLANs - Port-based VLANs - GVRP/GARP - IEEE 802.1v Protocol-based VLANs - MAC-based VLANs - IP subnet-based VLANs - Private VLANs (Community) - Traffic Segmentation (port isolated) - Voice VLANs - VLAN trunking - VLAN translation L3 features: Multi-netting (CIDR) IPv4 Static Routes RIP v1/v2 ARP/Proxy ARP
Miscellaneous.
Grade.	Commercial
PoE Supported.	No
Manageable.	Yes
Fanless.	No
Concurrent ports.	Total 28.00
Series.	KILBY series
Performance 2.
Switching capacity.	128 Gbps
Physical Specifications.
Product weight (kg).	3.8
Dimensions (W x D x H).	440 x 315 x 44 mm
Others.
Approval and Compliance.	FCC Class A, CE, VCCI, CB, UL, WEEE, RoHS
Operating humidity.	10% RH ~ 90% RH
Operating temperature.	0°C ~ 45°C
Storage humidity.	10% RH ~ 90% RH
Storage temperature.	-40°C ~ 70°C
Package Contents.	GTL-2882, Power Cord, Console Cable, 19" Rack Mount Kit, Rubber Feet, Quick Installation Guide, Resource CD (User Manual, QIG)
System Specifications.
Power supply.	AC power
Data Rate.	10Gbps, 1Gbps
Power supply included.	Yes
Power input.	100 to 240 V, 50-60 Hz, 2 A
Power consumption.	42 W
MTBF.	364,434 hr (25ﾡC)
Packet forwarding rate.	95.23 Mpps
Port Configuration.	24x 100/1000Base-X SFP slots, 2x Gigabit RJ45/SFP combo, 2x 10GbE SFP+ slots, 1 x 10GbE Module Slot (Optional MDU-0211, 2-Port 10G SFP+ Module )
Standard.	IEEE 802.1p priority tags IEEE 802.1x port authentication IEEE 802.3x Ethernet frame start and stop requests and timers used for flow control on full-duplex links IEEE 802.3u CSMA/CD access method and physical layer specifications for 100 BASET-X Fast Ethernet IEEE 802.3z CSMA/CD access method and physical layer specifications for 1000 BASE Gigabit Ethernet IEEE 802.1q Virtual LAN IEEE 802.1d Spanning Tree Protocol IEEE 802.3ad Link Aggregation Control Protocol IEEE 802.1s Rapid Spanning Tree Protocol IEEE 802.1w Multiple Spanning Tree ProtocolIEEE 802.1p priority tags IEEE 802.1x port authentication IEEE 802.3x Ethernet frame start and stop requests and timers used for flow control on full-duplex links IEEE 802.3u CSMA/CD access method and physical layer specifications for 100 BASET-X Fast Ethernet IEEE 802.3z CSMA/CD access method and physical layer specifications for 1000 BASE Gigabit Ethernet IEEE 802.1q Virtual LAN IEEE 802.1d Spanning Tree Protocol IEEE 802.3ad Link Aggregation Control Protocol IEEE 802.1s Rapid Spanning Tree Protocol IEEE 802.1w Multiple Spanning Tree Protocol
Mount.	19" rack mount
Flash memory size.	128 MB
RAM size.	256 MB
MAC address table.	16 K
Jumbo frame (KB).	10
Indicators.	LED indicaters : Port, Uplink, System, Diagnoustic
Packet buffer.	1.5 Mbits
Backplane (Gbps).	128
