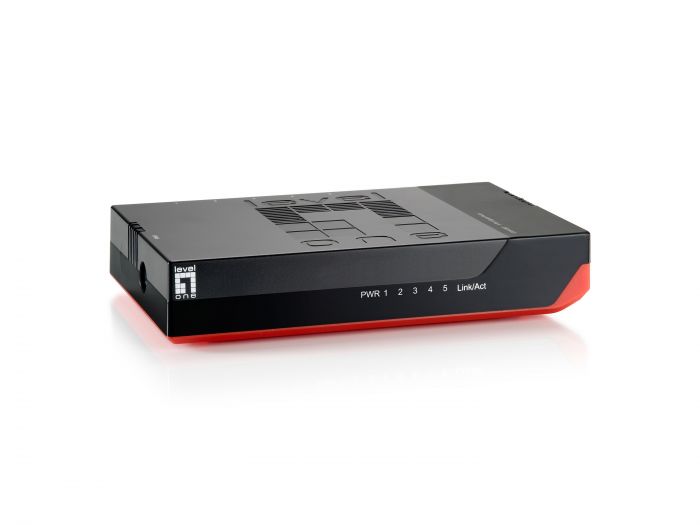

GSW-0507 5-Port Gigabit Switch

Model Number.
GSW-0507
SKU
53014703601
  • 5 Gigabit Ethernet ports
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Supports 8K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Provides wall or desktop mounting
  • Quick and easy installation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • The LevelOne GSW-0507 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 1000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption.

    Power Saving Features
    The GSW-0507 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections.

    Compact and Stylish Design
    The stylish, compact wall-mountable housing of GSW-0507 fits any working environment. It comes with 5 10/100/1000Mbps ports to meet SOHO and home network expansion needs.

    Easy to Use
    The GSW-0507 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.
    More Information
    Port Configuration
    Gigabit RJ45 5
    Logistics Data.
    Harmonized System (HS) code. 851762
    Customs product code (TARIC). 8517620000
    General.
    Color. Black / Red
    EAN. 4015867225134
    Model Number. GSW-0507
    Miscellaneous.
    Grade. Commercial
    PoE Supported. No
    Manageable. No
    Fanless. Yes
    Concurrent ports. Total 5.00
    Physical Specifications.
    Product weight (kg). 0.1005
    Dimensions (W x D x H). 149.5 x 89 x 27 mm
    System Specifications.
    Power supply. • External Power Adapter • INPUT 100-240V~50/60Hz 0.25A MAX • OUTPUT 5.0V/1.0A 5.0W
    Data Rate. 1Gbps
    Power supply included. No
    Power consumption. < 3W
    Standard. • IEEE 802.3 10-BASE-T, Ethernet
    • IEEE 802.3u 100-BASE-TX, Fast Ethernet
    • IEEE 802.3ab 1000-BASE-T, Gigabit Ethernet
    • IEEE 802.3x Flow Control (full-duplex flow control)
    • IEEE 802.3az Energy Efficient Technology
    Mount. Desk mount, Wall mount
    MAC address table. 8K
    Jumbo frame (KB). 9
    Indicators. • Power
    • Link/Active
    Backplane (Gbps). 10
    Others.
    Approval and Compliance. • CE
    • RoHS
    Package Contents. • GSW-0507
    • Power Adapter
    • Quick Installation Guide
