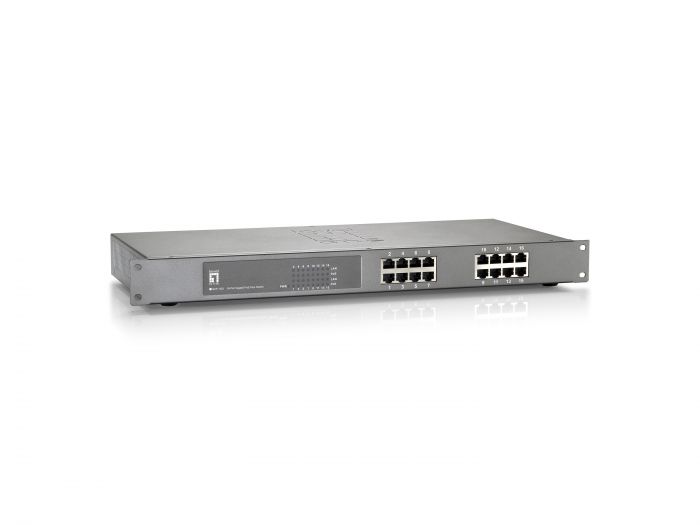

GEP-1621 16-Port Gigabit PoE-Plus Switch, 240W

Model Number.

GEP-1621

SKU

599013

Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

IEEE 802.3af/at PoE compliant to simplify deployment and installation

Auto-detection and protection of non-standard PoE devices

10/100/1000Mbps wire speed transmission and reception

Supports 8K MAC address auto-learning and auto-aging

9K jumbo frames to increase data transfer rates

16 PoE-Plus Gigabit Ethernet ports

Details

The LevelOne GEP-1621 is a Gigabit PoE-Plus Switch with 16 x 10/100/1000Base-T PoE-Plus ports. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 240W, up to 30W per port. Ideal for desktops, it is also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-1621 is designed for small-to-median businesses that prefers an affordable solution for PoE deploying infrastructure.

Specifications

More Information
Port Configuration
802.3af/at PoE	16
Logistics Data.
Harmonized System (HS) code.	851762
Customs product code (TARIC).	8517620000
General.
Color.	Grey
EAN.	4015867185674
Model Number.	GEP-1621
Features 1.
Features.	Flow Control: Half Duplex - Backpressure; Full Duplex - Pause frame
Miscellaneous.
Grade.	Commercial
PoE Supported.	Yes
Manageable.	No
Fanless.	No
Concurrent ports.	Total 16.00
PoE Power Budget.	Total 240.00
Performance 2.
Switching capacity.	32Gbps
Physical Specifications.
Product weight (kg).	2,9
Dimensions (W x D x H).	480 x 200 x 44 mm
System Specifications.
Data Rate.	1Gbps
Power supply included.	Yes
Standard.	IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3az Energy-Efficient Ethernet
Mount.	19" rack mount
Flash memory size.	256
MAC address table.	8K
Jumbo frame (KB).	9
Indicators.	Power; Link/Active; PoE
Backplane (Gbps).	32
Others.
Approval and Compliance.	FCC Part 15 Class A, CE, RoHS
Operating humidity.	5% RH ~ 90% RH
Operating temperature.	0°C ~ 50°C
Storage humidity.	5% RH ~ 90% RH
Storage temperature.	-40°C ~ 70°C
Package Contents.	GEP-1621, Power Cord, Quick Installation Guide

Download Resources

Download PDF
