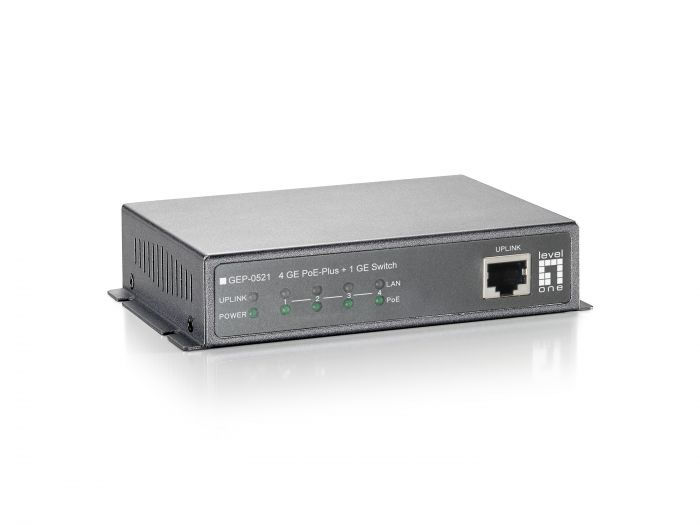

GEP-0521 4 GE PoE-Plus + 1 GE Switch, 115W

Model Number.
GEP-0521
SKU
570767
  • 1 Gigabit port and 4 Gigabit PoE ports
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • 9K jumbo frames to increase data transfer rates
  • Auto-detection and protection of non-standard PoE devices
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • Total PoE power budget: 115W, up to 30W per port
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
    • The LevelOne GEP-0521 provides 5 x 10/100/1000Base-T PoE-Plus ports. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 115W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, it supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefers an inexpensive solution for PoE deploying infrastructure.
    More Information
    Port Configuration
    Fast Ethernet multi-mode ST 1
    802.3af/at PoE 4
    Logistics Data.
    Harmonized System (HS) code. 851762
    Customs product code (TARIC). 8517620000
    General.
    Color. Grey
    EAN. 4015867185742
    Model Number. GEP-0521
    Features 1.
    Features. Flow Control: Half Duplex - Backpressure; Full Duplex - Pause frame
    Miscellaneous.
    Grade. Commercial
    PoE Supported. Yes
    Manageable. No
    Fanless. Yes
    Concurrent ports. Total 5.00
    PoE Power Budget. Total 115.00
    Physical Specifications.
    Product weight (kg). 0,8
    Dimensions (W x D x H). 120 x 90 x 28 mm
    System Specifications.
    Data Rate. 1Gbps
    Power supply included. Yes
    Standard. IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
    IEEE 802.3x Flow Control (full-duplex flow control)
    IEEE 802.3af Power over Ethernet (PoE)
    IEEE 802.3at Power over Ethernet Plus (PoE+)
    IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
    IEEE 802.3x Flow Control (full-duplex flow control)
    IEEE 802.3af Power over Ethernet (PoE)
    IEEE 802.3at Power over Ethernet Plus (PoE+)
    IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
    IEEE 802.3x Flow Control (full-duplex flow control)
    IEEE 802.3af Power over Ethernet (PoE)
    IEEE 802.3at Power over Ethernet Plus (PoE+)
    IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
    IEEE 802.3x Flow Control (full-duplex flow control)
    IEEE 802.3af Power over Ethernet (PoE)
    IEEE 802.3at Power over Ethernet Plus (PoE+)
    IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
    IEEE 802.3x Flow Control (full-duplex flow control)
    IEEE 802.3af Power over Ethernet (PoE)
    IEEE 802.3at Power over Ethernet Plus (PoE+)
    IEEE 802.3az Energy-Efficient EthernetIEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
    IEEE 802.3x Flow Control (full-duplex flow control)
    IEEE 802.3af Power over Ethernet (PoE)
    IEEE 802.3at Power over Ethernet Plus (PoE+)
    IEEE 802.3az Energy-Efficient Ethernet
    Mount. 19" rack mount
    Flash memory size. 104
    MAC address table. 1K
    Jumbo frame (KB). 8
    Indicators. Power; Uplink; Link/Active; PoE
    Backplane (Gbps). 10
    Others.
    Approval and Compliance. FCC Part 15 Class A, CE, RoHS
    Operating humidity. 10% RH ~ 90% RH
    Operating temperature. 0°C ~ 50°C
    Storage humidity. 10% RH ~ 90% RH
    Storage temperature. -20°C ~ 70°C
    Package Contents. GEP-0521
    Netzadapter
    Quick Installation Guide
    Qig download (531.77 kB)
    Ecdoc download (147.93 kB)
