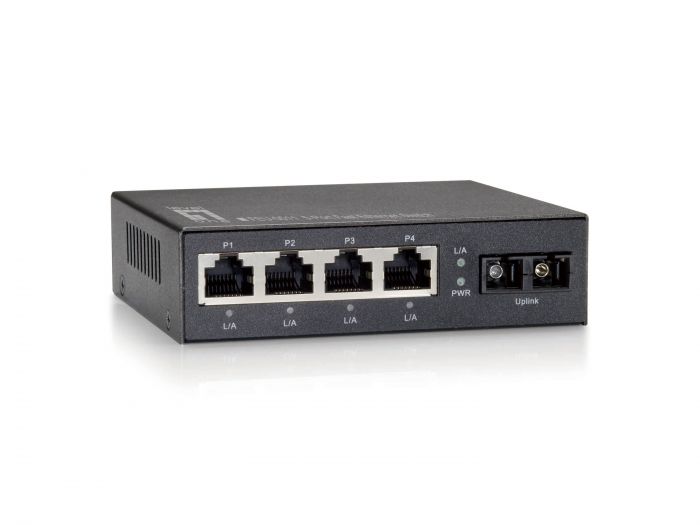

FEU-0511 5-Port Fast Ethernet Switch, 1 x SC Multi-Mode Fiber

Model Number.
FEU-0511
SKU
530158
  • Provides flexibility of 4 x 10/100BASE-TX ports
  • 100Base-FX Multi-mode fiber for the link up to 2km
  • 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
    • FEU-0511 are 10/100Mbps adaptive fast Ethernet Optical Media Converter, with built-in 4 ports 10M/100Mbps self-adaptive switch, converting the 4 independent 10Base-T or 100Base-TX twisted pair electrical signal with 100Base-FX optical signal. It extends the network transmission range from 100m, the limit of copper line to 120Km (single mode full duplex). It supports two different types of network connection media, 10/100Base-TX and 100Base-FX. By switching technique and storage & forwarding technique, it realizes the data transmission between two network connection media. It supports optical transmission under dual-fiber multi-mode, dual-fiber single mode, and single fiber single mode.
    More Information
    Port Configuration
    Console RJ45 5
    Logistics Data.
    Harmonized System (HS) code. 851762
    Customs product code (TARIC). 8517620000
    Miscellaneous.
    Grade. Commercial
    PoE Supported. No
    Manageable. No
    Fanless. Yes
    Concurrent ports. Total 5.00
    Performance 2.
    Switching capacity. 1.0Gbps
    System Specifications.
    Data Rate. 100Mbps
    Standards. IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3u 100-BASE-TX, Fast Ethernet, IEEE 802.3x Full-duplex Flow Control
    Power supply included. Yes
    Port Configuration. 4x 10/100BASE-TX Ethernet Port, 1x 100Base-FX SC Fiber Port
    Standard. IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3u 100-BASE-FX, Fast Ethernet
    IEEE 802.3x Full-duplex Flow Control
    IEEE 802.3af Power over Ethernet (PoE) (optional)
    IEEE 802.3at Power over Ethernet Plus (PoE+)(optional)IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3u 100-BASE-FX, Fast Ethernet
    IEEE 802.3x Full-duplex Flow Control
    IEEE 802.3af Power over Ethernet (PoE) (optional)
    IEEE 802.3at Power over Ethernet Plus (PoE+)(optional)IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3u 100-BASE-FX, Fast Ethernet
    IEEE 802.3x Full-duplex Flow Control
    IEEE 802.3af Power over Ethernet (PoE) (optional)
    IEEE 802.3at Power over Ethernet Plus (PoE+)(optional)IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3u 100-BASE-FX, Fast Ethernet
    IEEE 802.3x Full-duplex Flow Control
    IEEE 802.3af Power over Ethernet (PoE) (optional)
    IEEE 802.3at Power over Ethernet Plus (PoE+)(optional)IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3u 100-BASE-FX, Fast Ethernet
    IEEE 802.3x Full-duplex Flow Control
    IEEE 802.3af Power over Ethernet (PoE) (optional)
    IEEE 802.3at Power over Ethernet Plus (PoE+)(optional)IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3u 100-BASE-FX, Fast Ethernet
    IEEE 802.3x Full-duplex Flow Control
    IEEE 802.3af Power over Ethernet (PoE) (optional)
    IEEE 802.3at Power over Ethernet Plus (PoE+)(optional)IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3u 100-BASE-FX, Fast Ethernet
    IEEE 802.3x Full-duplex Flow Control
    IEEE 802.3af Power over Ethernet (PoE) (optional)
    IEEE 802.3at Power over Ethernet Plus (PoE+)(optional)IEEE 802.3 10-BASE-T, Ethernet
    IEEE 802.3u 100-BASE-TX, Fast Ethernet
    IEEE 802.3u 100-BASE-FX, Fast Ethernet
    IEEE 802.3x Full-duplex Flow Control
    IEEE 802.3af Power over Ethernet (PoE) (optional)
    IEEE 802.3at Power over Ethernet Plus (PoE+)(optional)
    Acoustic noise (dB). 0
    Mount. Desk mount
    Flash memory size. 384
    MAC address table. 1K
    Indicators. Power, Link/Act
    Backplane (Gbps). 1
    Others.
    Approval and Compliance. CE, UKCA, RoHS
    Package Contents. FEU-0511
    Power Adapter
    Quick Installation Guide
    Declaration of Conformity
    General.
    Color. Black
    EAN. 4015867174838
    Model Number. FEU-0511
    Physical Specifications.
    Product weight (kg). 0.38
    Dimensions (W x D x H). 96 x 112 x 30 mm
    Qig download (488.84 kB)
    Ecdoc download (154.90 kB)
    Manual download (115.39 kB)
