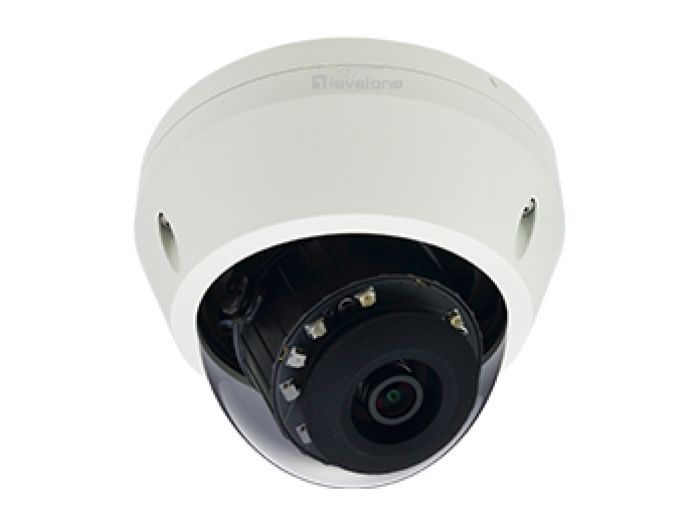

FCS-3307 HUBBLE Fixed Dome IP Camera, H.265, 5-MP

Model Number.

FCS-3307

SKU

57302507

Built-in infrared LEDs for night viewing up to 30m

Dual power support: 12V DC/PoE (IEEE 802.3af)

5-Megapixel high-definition resolution

Video compression: H.264, H.265

Weatherproof IP68-rated housing

Vandal-proof IK10-rated housing

Details

The LevelOne FCS-3307 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP68 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3307 offers 5-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

Specifications

More Information
Logistics Data.
Harmonized System (HS) code.	852589
Customs product code (TARIC).	8525890000
General.
Color.	White
EAN.	4015867202746
Model Number.	FCS-3307
Features 1.
Features.	Object Based Motion Detection, Tamper, Shock Detection, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering, Smoke Detection, Fire Detection (Some of the algorithms may not be available in the first release, can be upgraded for free later)
Miscellaneous.
2-way audio.	Yes
DI/DO.	Yes
IR LED for night vision.	Yes
Max. Resolution.	5 Megapixels
Resistance.	Weatherproof
IP Camera series.	HUBBLE
Camera Type.	Dome
Zoom type.	Fixed
PoE Supported.	Yes
Physical Specifications.
Dimensions (W x D x H).	115 x 115 x 87 mm
Product weight (kg).	0,835
System Specifications.
Angle of view (°).	120
Audio format.	8 kHz, 16 bit encoding, Mono, PCM, G.711
Image sensor.	1/2.9 "Progressive Scan CMOS
Indicators.	Power
IR cut filter.	Yes
IR range.	Up to 30 meter
Lens.	Fixed focal, f2.1mm, F1.8
Minimum illumination (lux).	Color: 0.1 lux at F1.8 (30 IRE, 2400 K); B/W: 0 lux at F1.8 (IR LED on)
Power consumption.	12.95 W (PoE)
Power supply.	VDC12V,PoE 802.3af
Power supply included.	No
Resolution.	30 fps at 2592 x 1944 30 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 960 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 30 fps at 320 x 240
Shutter time.	1/5-1/64000 second
Standard.	IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet (PoE+) TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4/v6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour,Multicast,Ssupports 802.1x
Supported storage capacity.	32 GB
Video format.	H.265/H.264/MJPEG
Others.
Approval and Compliance.	CE/FCC/UL,IK10,IP68
Operating temperature.	-40°C ~ 60°C
Supported browsers.	IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
Storage temperature.	0°C ~ 80°C
Package Contents.	FCS-3307 Screw Kit Resource CD (User Manual, Utility, 64-CH Monitoring Software)
