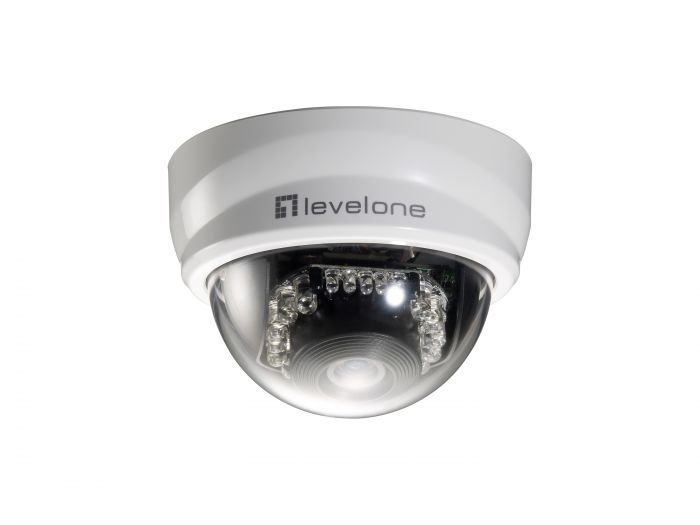

FCS-3101 Fixed Dome IP Network Camera, 2-Megapixel, 802.3af PoE, IR LEDs

Model Number.

FCS-3101

SKU

571018

Built-in infrared LEDs for night viewing up to 30m

Dual power support: 12V DC/PoE (IEEE 802.3af)

2-Megapixel high-definition resolution

Video compression: H.264

Details

The LevelOne FCS-3101 Fixed Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, The FCS-3101 offers 2-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

Specifications

More Information
Logistics Data.
Harmonized System (HS) code.	852589
Customs product code (TARIC).	8525890000
General.
Color.	White
EAN.	4015867186671
Model Number.	FCS-3101
Miscellaneous.
2-way audio.	Yes
DI/DO.	Yes
IR LED for night vision.	Yes
Max. Resolution.	2 Megapixels
Resistance.	Vandalproof
Camera Type.	Dome
Zoom type.	Fixed
PoE Supported.	Yes
System Specifications.
Audio format.	H.264/MJPEG/MPEG4
Image sensor.	1/3"
Indicators.	Power
IR cut filter.	Yes
IR range.	30M
Lens.	2.8mm
Mount.	Wall mount
Port Configuration.	RJ-45,audio out,power
Power consumption.	5W
Power supply included.	Yes
Resolution.	1920x1080
Shutter time.	1/30 -1/1,000,000 sec
Video format.	H.264 / MJPEG
Others.
Package Contents.	FCS-3101 Screw Kit Resource CD (User Manual, Utility, 64-CH Monitoring Software)
