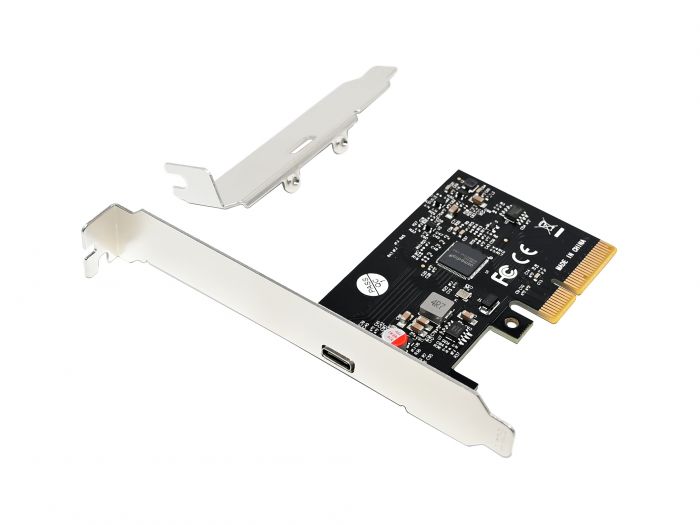

EMRICK14B 1-Port USB 3.2 Gen 2x2 Type-C PCIe Card

Model Number.

EMRICK14B

SKU

110014707101

Add a USB-C port to your desktop computer

USB 3.2 Gen 2x2 SuperSpeed (20Gb/s)

Supports hot-swapping

Supports UASP

Details

This PCIe card lets you easily add an ultra-fast USB 3.2 Gen 2x2 Type-C port to your desktop computer. With a maximum data transfer rate of 20Gb/s, it enables quick and efficient transfers of large files and documents. Transform your desktop with cutting-edge USB 3.2 Gen 2x2 technology for faster and more efficient data management.

Specifications

More Information
Logistics Data.
Harmonized System (HS) code.	8471800000
Customs product code (TARIC).	8471800000
Physical Specifications.
Dimensions (W x D x H).	79 x 51 x 30 mm
Product weight (kg).	0.032
System Specifications.
Connector.	PCIe x4
Data Rate.	20Gbps
PCI version.	PCIe 3.0
Chipset.	ASM3242
Standards.	USB 3.2 Gen 2x2
Others.
Approval and Compliance.	CE, RoHS
Operating humidity.	15% RH ~ 90% RH
Operating temperature.	0°C ~ 85°C
Compatible operating systems.	Windows 8/8.1/10/11 macOS 10.8 to 10.10, and 10.12 or later Linux kernel 2.6.31 or later
Storage temperature.	-25°C ~ 85°C
Package Contents.	EMRICK14B Low profile bracket Multilingual quick installation guide
General.
Color.	Black
EAN.	4015867239339
Model Number.	EMRICK14B

Download Resources

Download PDF
