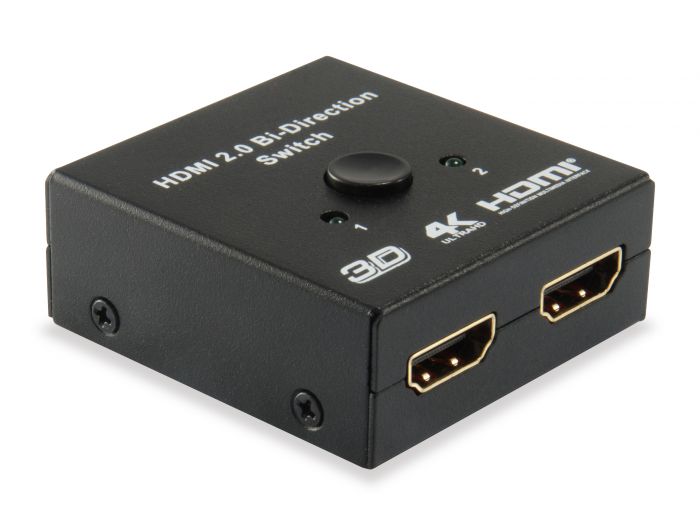

332723 HDMI Bi-Direction Switch

Model Number.

332723

SKU

332723

Option.1: Connect two HDMI sources to one HDMI display

Option.2: Connect one HDMI source to toggle between two displays (only one monitor will display at a time)

HDMI 2.0 compatible

Supports video resolutions up to 4K/60Hz

Supports HDCP2.2

Support HDR10/Dolby Vision 4K@60Hz 4:4:4

Compatible with a bandwidth of 6Gbps / 600MHz per channel (18Gbps Total)

Supports Dolby TrueHD and DTS-HD Master Audio

Supports 3D format video transmission

Material: Aluminum

Details

The equip HDMI Bi-directional Switcher/Splitter is very versatile as it can be used as either a 2 port switch or a 2 port splitter/selector. This means you have the option of using this with one host device (ie: Bluray Player, PS3, etc.) and have the signal sent to two displays (TV, Monitor, Projector, etc.), and then simply use the selector button to switch the signal back and forth between the displays.

Specifications

More Information
Port Configuration
HDMI out	1
HDMI in	2
Logistics Data.
Harmonized System (HS) code.	854370
Customs product code (TARIC).	8543709099
General.
Color.	Black
EAN.	4015867204115
Model Number.	332723
Physical Specifications.
Dimensions (W x D x H).	50 x 20 x 50 mm
Product weight (kg).	0,07
System Specifications.
Material.	Aluminum
Standards.	HDMI 2.0
Others.
Approval and Compliance.	RoHS
Operating temperature.	-10°C ~ 65°C
Package Contents.	HDMI Bi-Direction Switch User manual Quick Installation Guide

Download Resources

Download PDF
