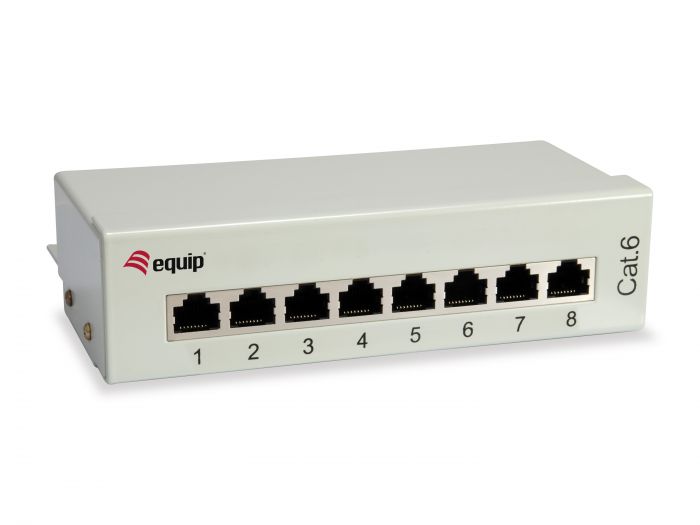

227369 8-Port Cat.6 Desktop Patch Panel, Light Grey

Model Number.

227369

SKU

227369

8 Ports x Cat.6 RJ45

Shielded

Class E, up tp 250MHz, 1GBase-T

Compliant with ANSI/TIA/EIA 568 standard

IDC T568A/T568B Color Coded

Dual IDC (LSA and 110) compatible

Material: Strudy Steel

Color: Light Grey (RAL 7035)

Details

The equip®Desktop Patch Panel is a compact network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 8 x RJ45 ports, this patch panel is recommended to connect with equip® patch cords and cabling accessories to achieve outstanding performance. Moreover, each port is marked with port number for recognition.

Specifications

More Information
Port Configuration
Cat.6 RJ45	8
Logistics Data.
Harmonized System (HS) code.	851779
Customs product code (TARIC).	8517790000
General.
Color.	Grey
EAN.	4015867207536
Model Number.	227369
Features 1.
Shielded.	Yes
Physical Specifications.
Dimensions (W x D x H).	160.3 x 109.2 x 44.45 mm
Product weight (kg).	0,65
System Specifications.
Category.	Cat.6
Material.	Metal
Mount.	Desk mount
Null panel.	No
Others.
Approval and Compliance.	RoHS
Package Contents.	227369

Download Resources

Download PDF
