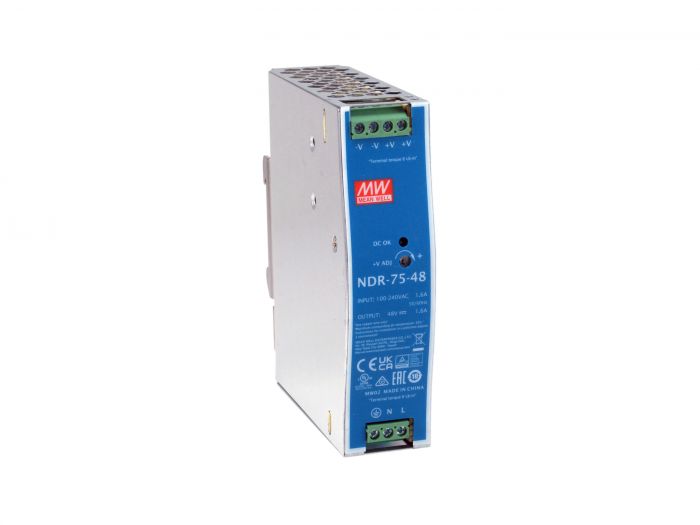

POW-4822, 48V DC Industrial Power Supply, 75W, DIN-Rail,-20 ~ +70 ℃
Modellnummer
POW-4822
SKU
59940407101
- Universal AC Input at Full Range
- Short Circuit, Overload / Over Voltage Protection
- Fanless Design Supports
- DIN-rail installation
- 104% Full Load
- Burn-in Test DC OK Relay Contact
The POW-4822 should be able to accept a wide range of input voltages, typically from 90V AC to 264V AC, allowing it to operate in various industrial environments.
DIN-rail Mounting to fit standard DIN-rail mounting systems commonly used in industrial cabinets, allowing for easy installation and space-saving.
It's essential for the power supply to have high energy efficiency, reducing power losses and operating costs while minimizing heat generation.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 850440 |
| Zolltariflicher Warencode (TARIC) | 8504409500 |
| Features 1. | |
| Features. |
OUTPUT: RIPPLE & NOISE (max.) : 150mVp-p VOLTAGE ADJ. RANGE : 48 ~ 55V VOLTAGE TOLERANCE : ±1.0% LINE REGULATION: ±0.5% LOAD REGULATION :±1.0% SETUP, RISE TIME: 1200ms, 60ms/230VAC 2500ms, 60ms/115VAC at full load HOLD UP TIME (Typ.): 16ms/230VAC 10ms/115VAC at full load |
| Physical Specifications. | |
| Dimensions (W x D x H). | 32x102x125.2 |
| Produktgewicht (kg) | 0.43 |
| System Specifications. | |
| Eingangsspannung |
Power Input: 90 ~ 264VAC 127 ~ 370VDC FREQUENCY RANGE: 47 ~ 63Hz AC CURRENT: 1.45A/115VAC 0.9A/230VAC INRUSH CURRENT (Typ.): 20A/115VAC 35A/230VAC LEAKAGE CURRENT: <1mA / 240VAC OVER VOLTAGE: 56 ~ 65V |
| Ausgangsspannung | DC VOLTAGE 48V RATED CURRENT: 1.6A CURRENT RANGE: 0 ~1.6A RATED POWER:76.8W |
| Others. | |
| Zulassungen und Konformität |
EN 55032 (CISPR32) Class A EN 61000-3-2,-3,EACTPTC020,CNS13438 Class A EN 61000-4-2,3,4,5,6,8,11 EN 61204-3 EN 55035 EN 61000-6-2 (EN 50082-2) MTBF: 486.2K hrs min |
| Operating humidity. | 0% RH ~ 90% RH |
| Operating temperature. | -20°C ~ 70°C |
| General. | |
| Farbe | Silver |
| EAN | 4015867236598 |
| Modellnummer | POW-4822 |
