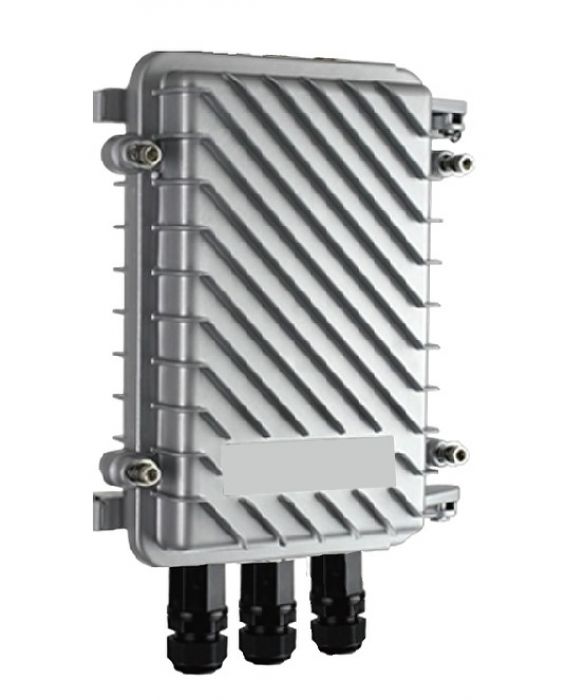

POR-1102, 2-Port Outdoor PoE Repeater, Cascadable

Modellnummer
POR-1102
SKU
55201507301
  • High Power PoE compliant to simplify deployment and installation
  • Multiple PoE repeaters can be deployed by daisy chain to extend range
  • Forwards Power over Ethernet (PoE) to remote device
  • Forwards 802.3af/High-Power PoE to remote device
  • Extends PoE connection for another 100 meters
  • No additional power supply required
  • Simple Plug and Play installation
  • Weatherproof IP66-rated housing
  • Extend the reach of your PoE devices. The LevelOne POR-1102 is the perfect accessory to increase your Power over Ethernet network performance. As a 2-port repeater, it's now easier to add more devices to the network for greater deployment flexibility. Simple yet durable, no software required. As a PoE Repeater, the POR-1102 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that the POR-1102 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices. The POR-1102 is the perfect solution for taking Ethernet to areas such as roof tops, factory floors, airports, and large warehouses. The POR-1102 is IP65-compliant meaning it is weatherproof from snow, rain, typhoons, desert heat, etc. This PoE Repeater is up to the challenge for deployment in any harsh weather condition! The POR-1102 can also work together with LevelOne's high-power PoE injector, POI-4000. This can extend Ethernet connectivity to an additional 100 meters for high power PD devices, such as 18 W IP Cameras or other devices that require power greater than 15.4 W.

    More Information
    Logistics Data.
    Code des Harmonisierten Systems (HS) 851762
    Zolltariflicher Warencode (TARIC) 8517620000
    General.
    Farbe Silver
    EAN 4015867227299
    Modellnummer POR-1102
    Features 1.
    Features. Multiple PoE repeaters can be deployed by daisy chain to extend range
    Forwards Power over Ethernet (PoE) to remote device
    Forwards 802.3af/High-Power PoE to remote device
    Extends PoE connection for another 100 meters

    Physical Specifications.
    Dimensions (W x D x H). 270 x 200 x 70 mm
    Produktgewicht (kg) 1.08
    System Specifications.
    Data Rate. 100Mbps
    Indikator Power, PoE In, PoE Out
    Befestigung Pole mount
    Pinbelegung und Polarität 1/2 (+), 3/6 (-)
    Cascadable. Ja
    Port Configuration RJ45
    Standards IEEE 802.3 10Base-T Ethernet
    IEEE 802.3u 100Base-TX Fast Ethernet
    IEEE 802.3af PoE
    Others.
    Operating humidity. 5% RH ~ 90% RH
    Operating temperature. 0°C ~ 50°C
    Lieferumfang POR-1102
    Mounting Kit
    Quick Installation Guide
