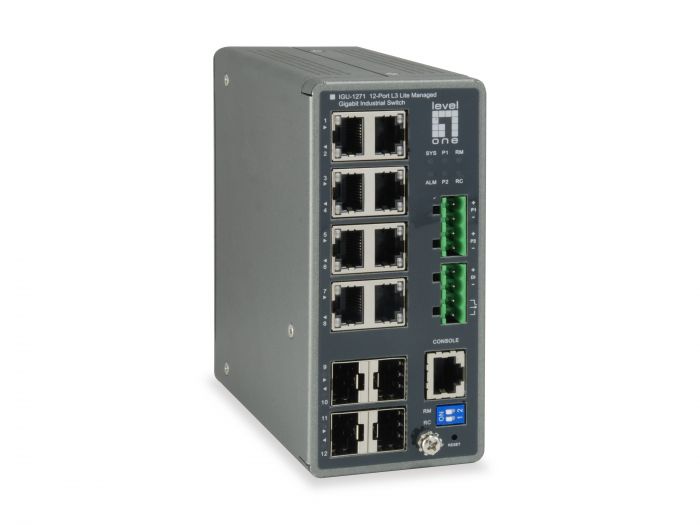

IGU-1271 TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 4 x SFP, DIN-Schiene, -40°C bis 75°C
Modellnummer
IGU-1271
SKU
55052307
- 8 Gigabit-Ports und 4 Gigabit SFP slots
- Unterstützt IPv4/IPv6 Netzwerkbetrieb
- Minimiert den Stromverbrauch durch moderne Energieeffizienz (IEEE-802.3az)
- Unterstützt Betriebs-, Administrations- und Wartungs-Mechanismen (OAM)
- Ethernet-Ring-Schutzschaltung (ERPS) für Ethernet-Ring Topologien mit Failover von unter 50ms
- Betriebstemperaturbereich von -40°C bis 75 °C
- Redundante Netzeingänge mit Anschlussblock
- Integriertes Device Management System (DMS) zur Verwaltung, Diagnostik und Überwachung angeschlossener Komponenten und Geräte
- 6KV Überspannungsschutzniveau an jedem UTP-Port
The LevelOne IGU-1271, a L3 Lite Managed Industrial Switch with 8 ports of Gigaibit RJ45 and 4 ports of Gigabit SFP. This switch is offering full suite of L2 management features, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in enterprise networks via fiber or copper connections.
| Port Configuration | |
|---|---|
| RJ45 Konsolenanschluss | 1 |
| Gigabit RJ45 | 8 |
| Gigabit SFP | 4 |
| Logistics Data. | |
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| Power. | |
| Power Redundancy. | Dual Power Input |
| Features 1. | |
| Features. |
VLAN: ● Private VLAN ● MAC-based VLAN ● Protocol-based VLAN ● IP Subnet-based VLAN ● Voice VLAN ● IEEE802.1q VLAN ● ITU-T G.8031 Ethernet Linear Protection Switching (EPS) ● ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) ● IEEE 1588v2 PTP ● IEEE 802.3ah OAM ● IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring) ● STP/RSTP/MSTP ● IGMP Snooping(v1/v2/v3) ● DHCP server/client ● Aggregation ● MVR ● MAC Table ● LLDP ● ERPS ● Mirroring ● GVRP ● UPnP ● sFlow ● UPnP ● UDLD ● QoS ● R-Ring,recover time <20ms,supports upto 250 switches ● Syslog ● SNMP ● SMTP ● NTP ● Config import/export L3 features: ● Static Route ● DHCP Server |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | No |
| Manageable. | Yes |
| Fanless. | Yes |
| Concurrent ports. | 12,00 Total |
| Series. | TURING series |
| Performance 2. | |
| Schaltleistung | 24Gbps |
| System Specifications. | |
| Stromversorgung | Optional, Terminal Block |
| Data Rate. | 1Gbps |
| Power supply included. | Nein |
| Eingangsspannung | Redundant Dual DC 12V-58V |
| Energieverbrauch |
● DC 12V input : 5.16 W (Non-loading), 9.12 W (Full loading) ● DC 24V input : 5.28 W (Non-loading), 9.48 W (Full loading) ● DC 48V input : 6.24 W (Non-loading), 10.56 W (Full loading) |
| Wärmeableitung | 36.03 BTU/hr (full loading PoE on) |
| Paket-Weiterleitungsrate | 17.856 Mpps |
| Port Configuration | 8x 10/100/1000 Mbps RJ-45 copper ports, 4x 100/1000 Mbps SFP Ports |
| IP grade | IP30 |
| Standards |
● IEEE 802.3 10-BASE-T (Ethernet) ● IEEE 802.3u 100-BASE-TX (Fast Ethernet) ● IEEE 802.3 ab 1000BASE-T (Gigabit Ethernet) ● IEEE 802.1D MAC Bridges ● IEEE802.1p priority tags ● IEEE802.1Q VLAN ● IEEE802.3 ac ● IEEE 802.1ab (LLDP) ● IEEE802.3 ad Link aggregation control protocol ● IEEE802.1w Fast Spanning Treel ● 802.1d Standard Spanning Tree ● IEEE 802.3 ah OAM ● IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring) ● IEEE802.1s l Multiple Spanning Tree (MSTP) ● IEEE802.1X authentication ● IEEE802.3 az Energy Efficient Etherne |
| Befestigung | DIN rail mount |
| Flash-Speichergröße | 32 MB |
| Arbeitsspeichergröße | 128 MB |
| MAC-Adresstabelle | 8 K |
| Indikator | Power, System, Alarm, Ring Master, Coupling, Port Status |
| Mikro-Schalter | Rapid Chain/Ring Master ON(1 OR 2) |
| Paketpuffer | 0.5 Mbits |
| Backplane (Gbit/s) | 24 |
| Others. | |
| Zulassungen und Konformität |
● CE ● UL ● CB ● FCC Part 15 Class B ● RoHS ● EN55032 ● EN61000-4-2 ● EN61000-4-3 ● EN61000-4-4 ● EN61000-4-5 ● EN61000-4-6 ● EN61000-4-8 ● EN61000-4-11 ● IEC60068-2-32 ● IEC60068-2-27 ● IEC60068-2-6 ● LVD with EN 62368-1 |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | -40°C ~ 75°C |
| Storage humidity. | 10% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 85°C |
| Lieferumfang |
● IGU-1271 ● Din-rail Mount Kit ● Console Cable ● Quick Installation Guide ● Resource CD (User Manual, QIG) |
| General. | |
| Farbe | Grey |
| EAN | 4015867202661 |
| Modellnummer | IGU-1271 |
| Physical Specifications. | |
| Produktgewicht (kg) | 0.7 |
| Dimensions (W x D x H). | 62 x 130 x 135 mm |
