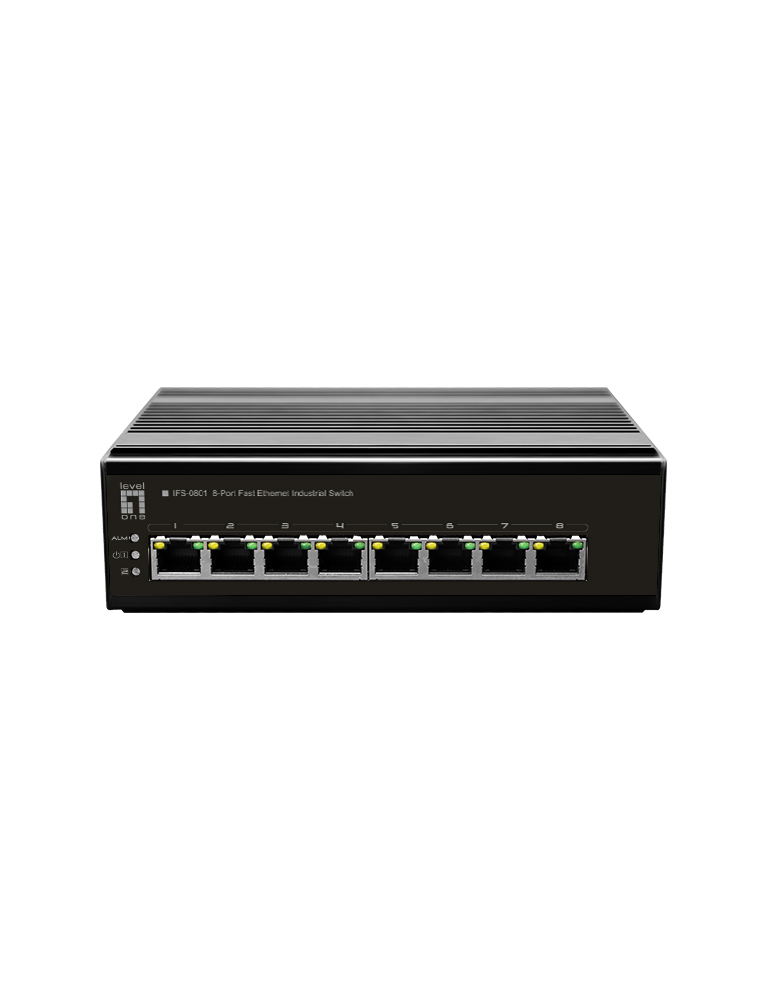

IFS-0801, 8-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C
Modellnummer
IFS-0801
SKU
55052807
LevelOne IFS-0801 Industry Ethernet Switch provides 8 ports 10/100Base network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| Power. | |
| Power Redundancy. | Dual Power Input |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867223932 |
| Modellnummer | IFS-0801 |
| Miscellaneous. | |
| Grade. | Industrial |
| PoE Supported. | No |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | 8,00 Total |
| Physical Specifications. | |
| Produktgewicht (kg) | 0.45 |
| Dimensions (W x D x H). | 165 x 114 x 50 mm |
| Others. | |
| Zulassungen und Konformität |
CE/FCC Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2 |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Lieferumfang |
IFS-0801 Power Terminal Block Quick Installation Guide |
| System Specifications. | |
| Stromversorgung | Optional, VDC 12~60V |
| Data Rate. | 100Mbps |
| Power supply included. | Nein |
| Eingangsspannung | Redundant Dual DC 12V-60V |
| Energieverbrauch | <5W |
| Standards |
IEEE 802.3 10-BASE-T (Ethernet) IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3x Flow Control (full-duplex flow control) |
| Befestigung | DIN rail mount |
| MAC-Adresstabelle | 8K |
| Indikator |
Power Act/Link |
| Paketpuffer | 1M |
| Backplane (Gbit/s) | 1.6 |
