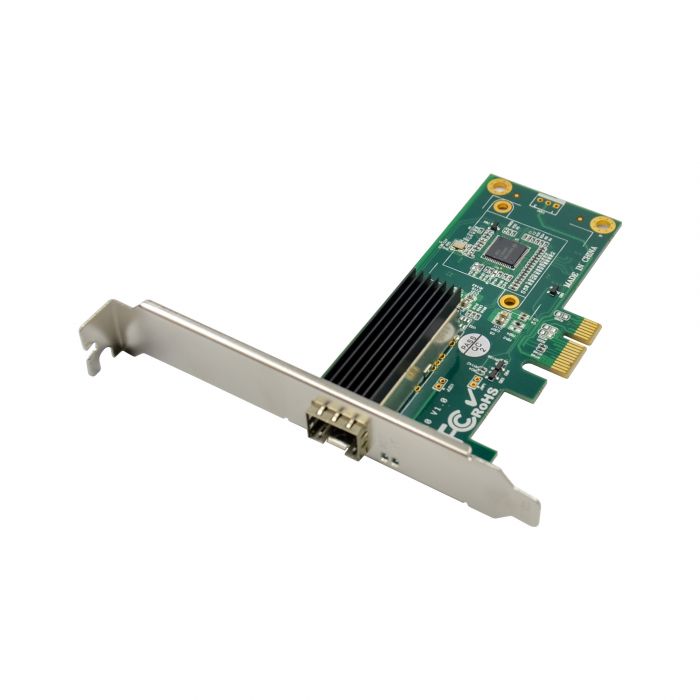

GNC-0110 Gigabit Fiber PCIe-x1 Network Card, 1 x SFP Slot

Modellnummer
GNC-0110
SKU
55011007201
  • Reliable and proven Gigabit Ethernet technology from Intel Corporation
  • Built-in Wake-on-LAN feature to startup computers remotely
  • Interrupt Moderation: Delivers increased performance while significantly reducing CPU utilization
  • 9K jumbo frames to increase data transfer rates
  • IEEE 1588 and 802.1as (Time Sync)
  • 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
  • Supports most network operating systems (NOS)
  • The LevelOne GNC-0110 Gigabit network card facilitates high-speed connectivity within a fiber-optic network, with PCI Express supporting speeds of up to 2.5 GT/s in full-duplex mode. Wake-on-LAN functionality allows remote start-up. Interrupt Moderation:Delivers increased performance while significantly reducing CPU utilization. The network card supports PCIe 1.0 and PCIe 2.0 x1 Lane, as well as supporting multiple operating systems. IEEE 802.1Q VLAN allows network segmentation, further enhancing performance and security.

    More Information
    Port Configuration
    Gigabit SFP 1
    Logistics Data.
    Code des Harmonisierten Systems (HS) 851762
    Zolltariflicher Warencode (TARIC) 8517620000
    Features 1.
    Features. PCI Express 2.1
    • 2.5 GT/s Support for x1 width (Lane)

    Energy Efficient Ethernet (EEE)
    • During periods of low network activity, EEE reduces the power consumption of an Ethernet connection by negotiating with the switch port to transition to a low power idle (LPI) state.

    Other performance-enhancing features include
    • IPv4 and IPv6 checksum offload
    • TCP/UDP checksum offload
    • Up to 256 KB TCP segmentation (TSO v2), header splitting,
    40 KB packet buffer size
    Miscellaneous.
    Host Interface. PCIe x1
    Network Card Type. Fiber Optics
    System Specifications.
    Data Rate. 1Gbps
    Jumbo-Frames (KB) 9
    Chipsatz Intel® Ethernet Controller I210
    Standards • 1000BASE-SX/LX/ZX fiber connections

    • IEEE 802.3az EEE standard

    • IEEE 802.1Qav Audio-Video Bridging (AVB) for tightly controlled media stream synchronization, buffering and reservation

    • Hardware-based timestamping of IEEE 1588 and 802.1AS packets
    Others.
    Zulassungen und Konformität • CE
    • RoHS
    Operating humidity. 10% RH ~ 90% RH
    Operating temperature. 0°C ~ 55°C
    Unterstützte Betriebssysteme • Windows 10/8/7/Vista/Sever2008/Sever 2012
    • Linux
    • DOS
    Storage humidity. 10% RH ~ 90% RH
    Storage temperature. -40°C ~ 85°C
    Lieferumfang • GNC-0110
    • Quick Installation Guide
    • Low Profile Bracket
    • Resource CD (User Manual, Driver)
    General.
    Farbe Green
    EAN 4015867191057
    Modellnummer GNC-0110
    Physical Specifications.
    Dimensions (W x D x H). 120 x 116 x 18 mm
