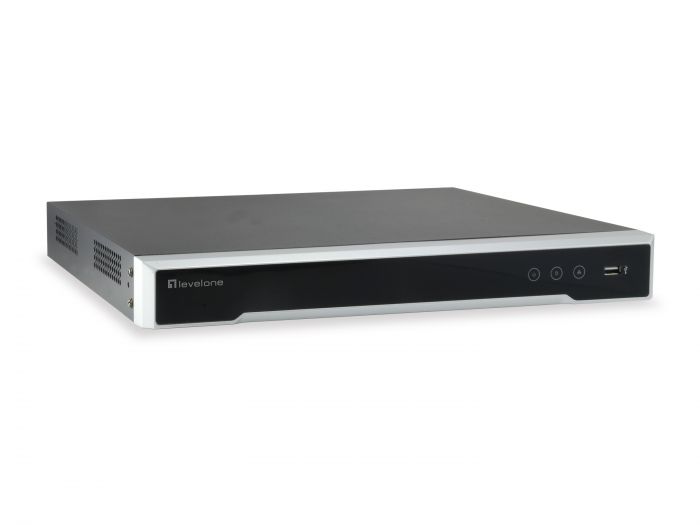

GEMINI 8-Kanal PoE Netzwerk Videorekorder, 8 PoE-Ausgänge, H.265
Logistics Data. | |
---|---|
Code des Harmonisierten Systems (HS) | 852190 |
Zolltariflicher Warencode (TARIC) | 8521900000 |
General. | |
Farbe | Schwarz |
EAN | 4015867202272 |
Modellnummer | NVR-0508 |
Features 1. | |
Features. |
Pre-Recording / Post-Recording Search Date / Time / Event Export video by USB / Web browser / CMS Liveview & Playback on Smart phone iOS, Android Basic Event : Motion, Video Tampering, Video Loss Alarm, Input Alarm Output Exception Smart Event Compatibility With Camera : Facial DetectionLine Crossing Detection, Intrusion |
Miscellaneous. | |
Max. channels. | 8 |
RAID supported. | No |
Non-disclosure. | |
Embedded-System | Lunix |
Physical Specifications. | |
Dimensions (W x D x H). | 315 x 52 x 385 mm |
Produktgewicht (kg) | 3 |
System Specifications. | |
Number of client | 64 |
Drive bays. | 2 |
Indikator |
Power Alarm H.D.D. |
Energieverbrauch |
Total:180 W PoE:120W |
Power supply included. | Ja |
Protocols. | Http, Https, SNMP, NTP, IPv4, IPv6, TCP, UDP, SNTP, FTP, DHCP, DDNS, PPPoE, RTP, SSL, SMTP, RTSP |
Auflösung |
Recording at up to 8MP resolution Recording resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/CIF/QCIF Capability: 2-ch @ 4K, or 8-ch @ 1080p HDMI Video Output at up to 4K (3840 *2160) Resolution |
Resolutions. | 3840*2160@15fps |
Supported storage capacity. | 20 TB |
Supported drive capacity. | 10 TB |
Video Bandwidth. |
Incoming bandwidth: 80 Mbps Outgoing bandwidth: 160 Mbps |
Anzahl der Videokanäle | 8 |
Videoformat | H.265/H.264/H.264+ |
Others. | |
Zulassungen und Konformität | CE/FCC,uL |
Operating humidity. | 10% RH ~ 90% RH |
Operating temperature. | -10°C ~ 55°C |
Unterstützte Browser | Internet Explorer 9.0 or above |
Lieferumfang |
NVR-0508 Power Codrd |
