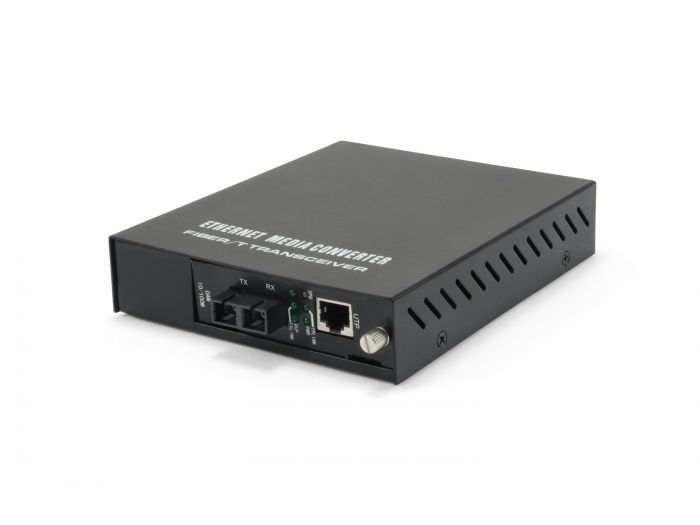

FVM-1101, Managebarer Fast-Ethernet RJ45 zu SC Mediakonverter, Multi-Mode Glasfaser
Modellnummer
FVM-1101
SKU
53107403
- Für Multimode-Glasfasern mit SC-Anschluss zur Übertragung auf bis zu 2 km
- Unterstützt Betriebs-, Administrations- und Wartungs-Mechanismen (OAM)
- Unterstützt VLAN (Tag-basiertes, Q-in-Q)
- Webbasiertes und SNMP-Verwaltung
- Integrierte LFP- (Link Fault Pass-through) (LLCF/LLR) Technologie
- IEEE-802.3x Flow-Control schützt vor Packet-Loss und sorgt für zuverlässige Datenübertragung
FVM-1101 is remote Managed Fast Ethernet fiber media converter with OAM functions developed by our company. It can convert Ethernet signal between 10/100Base-Tx and 100Base-FX, It supports both half-duplex and full-duplex operations and a variety of fiber options. It is double fiber, multi mode, 2km media converter
Remote devices can be managed by fiber-connected OAM media converter or OAM switch when deployed as a stand-alone solution. It incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| Features 1. | |
| Features. |
1. 10/100Mbps auto-sensed, facilitating network upgrade 2. Suppport LFP function 3. Built-in efficient switching core to implement flow control and reduce broadcast packets 5. Support SC/ST/FC fiber connector 6. Support Jumbo frame up to 9k bytes 7. Support Q-in-Q function, Optical port and Ethernet port can be set separately as dual Tag ports, and can be set as ISP Tag and ISP Tag TPID 8. Support configure the operation mode of each port on local and remote devices, including port speed, full/half-duplex, and flow control, etc, and can display the real-time status of each port 9. Support bandwidth-limiting function: with the step of 64kps, the bandwidth can be set between 0Mbps and 100Mbps 10. Support 4 kinds of 802.3ah OAM functions: Discover of OAM, MIB variable response, OAM Loopback, Dying Gasp alarm 11. Offer MIB library files, support OpenView?Snmpc, and other softwares |
| Miscellaneous. | |
| Fiber Optical Mode. | Multi-Mode |
| Media Interface. | RJ45 to MMF SC |
| PoE Supported. | No |
| Manageable. | Yes |
| Grade. | Commercial |
| Physical Specifications. | |
| Dimensions (W x D x H). | 127 x 156 x 32 mm |
| Produktgewicht (kg) | 0,72 |
| System Specifications. | |
| Data Rate. | 100Mbps |
| Indikator |
PWR (power supply), FX LINK/ACT (optical link action) FDX (full duplex), TX LINK/ACT (TP cable link/action) TX 100 (TP cable rate 100M), LFP(LFP function enable/disable) |
| MTBF | 30000hours |
| Power supply included. | Ja |
| Standards |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3u 100Base-Fx Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3ah OAM |
| Übertragungsmethode | store and forward or cut-through by software configure |
| Wellenlänge (nm) | 1310 |
| Others. | |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | -10°C ~ 55°C |
| Lieferumfang |
● FVM-1101 ● Power Cord ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867195529 |
| Modellnummer | FVM-1101 |
