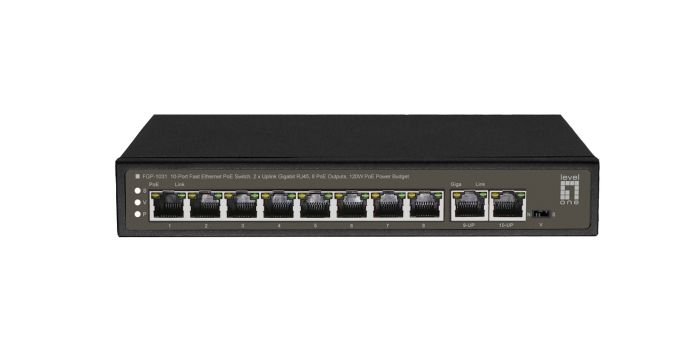

FGP-1031 10-Port Fast Ethernet PoE Switch, 2 x Uplink Gigabit RJ45, 8 PoE Outputs, 120W PoE Power Budget
Modellnummer
FGP-1031
SKU
52095303101
The FGP-1031 switch provides 10 port 10/100 ports with 2 port 1000/100/10 Mbps uplink port. It is designed for easy installation and high performance in an environment where traffic is on the network and the number of users increases continuously. It consists of 8 PSE/PoE ports. That can solve the limitation of the power outlet location and offer the system designer a flexible solution to locate the network device everywhere.The device size is specifically designed for medium to large workgroups. The Switch can be installed where space is limited; moreover it provides smooth network migration and easy upgrade to network capacity.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| General. | |
| Farbe | Schwarz |
| EAN | 4015867228166 |
| Modellnummer | FGP-1031 |
| Features 1. | |
| Features. |
8*10/100Base-TX PoE port（Data/Power） 2*10/100/1000Base-TX uplinkRJ45 port (Data) 1-8 port support PoE(first port supports output HiPoE_60W) |
| Verwaltung |
DIP: N - Standard Mode : All ports communicate freely,adapting to common data transmission environment V - Port Lsolation : Switch to VLAN mode; down-link isolating from each other,uploads and downloads data through up-link;suppress network failure like broadcast storm and virus attack S - Super Mode : Down-link speed limitation :10M( Ultral-far transmission:250 meters) |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | 10,00 Total |
| PoE Power Budget. | 120,00 Total |
| Physical Specifications. | |
| Produktgewicht (kg) | 0.8 |
| Dimensions (W x D x H). | 210 x 150 x 35 mm |
| Others. | |
| Zulassungen und Konformität |
CE/LVD : FCC Part 15 Class B；RoHS； 3KV 8/20us； Ip30 |
| Operating humidity. | 5% RH ~ 90% RH |
| Operating temperature. | -10°C ~ 55°C |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 75°C |
| Lieferumfang |
FGP-1031 Power cord |
| System Specifications. | |
| Stromversorgung | 100-240VAC |
| Data Rate. | 1Gbps, 100Mbps |
| Power supply included. | Ja |
| Energieverbrauch | Sandby Power Consumption:≤5W |
| MTBF | 50000 Hours |
| IP grade | IP 30 |
| Standards |
IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u100BASE-TX IEEE 802.3x IEEE 802.3ab1000BASE-T IEEE 802.3af/at/PoE++ |
| Pinbelegung und Polarität | 1/2 (+), 3/6 (-) |
| Befestigung | Desk mount |
| MAC-Adresstabelle | 2K |
| Indikator | Link/ Act /PoE/ Power |
| Mikro-Schalter | Mode: Standard/Vlan/Super |
| Backplane (Gbit/s) | 5.6 |
