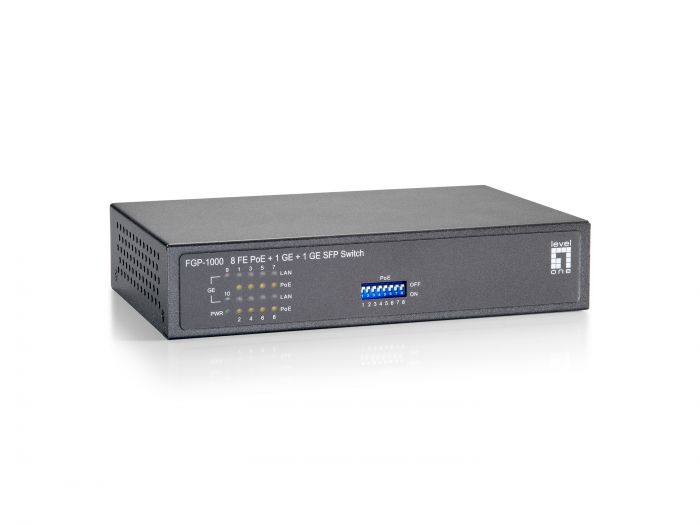

FGP-1000 10-Port-Fast Ethernet-PoE-Switch, 1 x Gigabit RJ45, 1 x Gigabit SFP, 8 PoE-Ausgänge, 120W
Modellnummer
FGP-1000
SKU
520831
- 8 Fast Ethernet-PoE-Anschlüsse, 1 Gigabit port und 1 Gigabit SFP slot
- DIP-Schalter zur Steuerung der PoE-Aktivität aller Ports
- IEEE-802.3x Flow-Control schützt vor Packet-Loss und sorgt für zuverlässige Datenübertragung
- Einfache Plug-and-Play-Installation
FGP-1000 is a 8-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 8 dip switches, each PoE port can be manually set for On-Off control. FGP-1000 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports.
| Port Configuration | |
|---|---|
| Fast-Ethernet Multi-Mode ST | 1 |
| Gigabit RJ45/SFP Combo | 1 |
| 802.3af/at PoE | 8 |
| Logistics Data. | |
| Code des Harmonisierten Systems (HS) | 851762 |
| Zolltariflicher Warencode (TARIC) | 8517620000 |
| General. | |
| Farbe | Grey |
| EAN | 4015867187982 |
| Modellnummer | FGP-1000 |
| Miscellaneous. | |
| Grade. | Commercial |
| PoE Supported. | Yes |
| Manageable. | No |
| Fanless. | Yes |
| Concurrent ports. | 10,00 Total |
| PoE Power Budget. | 120,00 Total |
| Performance 2. | |
| Schaltleistung | 5.6Gbps |
| Physical Specifications. | |
| Produktgewicht (kg) | 1,5 |
| Dimensions (W x D x H). | 188 x 118 x 38 mm |
| System Specifications. | |
| Data Rate. | 1Gbps, 100Mbps |
| Power supply included. | Ja |
| Standards |
IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Full-duplex Flow ControlIEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Full-duplex Flow Control |
| Befestigung | Desk mount |
| Flash-Speichergröße | 512 |
| MAC-Adresstabelle | 4K |
| Indikator | Power, Active, 10/100/1000M, PoE |
| Backplane (Gbit/s) | 5.6 |
| Others. | |
| Zulassungen und Konformität | FCC, CE, RoHS |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 0°C ~ 45°C |
| Storage humidity. | 10% RH ~ 90% RH |
| Storage temperature. | -40°C ~ 70°C |
| Lieferumfang |
FGP-1000, Power Adapter, User Manual |
