FCS-4051 GEMINI PTZ IP Camera, 2-MP, 25x Zoom, H.265, IR 100M
Modellnummer
FCS-4051
SKU
57303007201

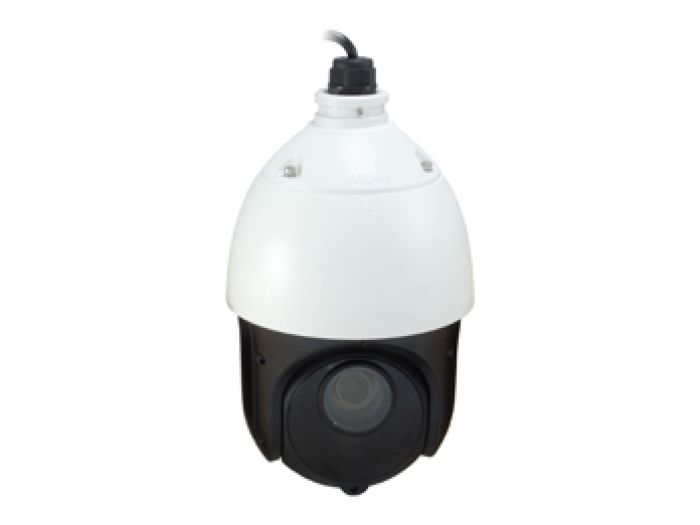

The LevelOne FCS-4051 is a PTZ IP surveillance camera designed for use outdoors, boasting 2-Megapixel resolution and a 25X optical zoom. The camera features motorized Pan and Tilt features as well, enabling it to focus in a variety of directions and zoom in on a specific viewing area. The camera is also PoE, enabling it to run both power and data on the one Cat.5 cable, making deployments easy and efficient. An IP66-rated weatherproof casing allows for safe, reliable operation in outdoor conditions such as rain, heat, dust, snow and humidity.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 852589 |
| Zolltariflicher Warencode (TARIC) | 8525890000 |
| General. | |
| Farbe | Weiß |
| EAN | 4015867227596 |
| Modellnummer | FCS-4051 |
| Features 1. | |
| Features. |
Digital Wide Dynamic Range (DWDR),rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser.3 Stream,SDK Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 2 Megapixels |
| Resistance. | Weatherproof |
| IP Camera series. | GEMINI |
| Camera Type. | Speed Dome |
| Zoom type. | Motorization |
| PoE Supported. | Yes |
| Physical Specifications. | |
| Dimensions (W x D x H). | 295 x 164.5 x 164.5 mm |
| Produktgewicht (kg) | 2 |
| System Specifications. | |
| Betrachtungswinkel | Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele) |
| Audioformat | G.711/G.722.1/G.726/MP2L2/PCM |
| Bildsensor | 1/2.8" progressive scan CMOS |
| Indikator | Power |
| IR Sperrfilter | Ja |
| Infrarotdistanz in m | Up to 100 meter |
| Linse | 4.8 mm to 120 mm, F1.6 |
| Minimale Beleuchtung (Lux) | Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Befestigung | Wall mount |
| Schwenkbereich | 360°,Pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s |
| Port Configuration | RJ45/DI/Power |
| Energieverbrauch | Max. 24 W, including max. 9 W for supplement light |
| Stromversorgung | VDC 12V /2A |
| Power supply included. | Ja |
| Auflösung |
Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Verschlusszeit | 1s to 1/30,000 s |
| Standards | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Supported storage capacity. | 256 GB |
| Neigungsbereich | -15° to 90° (auto flip), Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
| Videoformat | H.265/H.264/MJPEG |
| Wetterfestigkeit | IP66 |
| Others. | |
| Zulassungen und Konformität |
CE/FCC/UL,/IP66/RoHS UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) TVS 6000V lightning protection, surge protection and voltage transient protection |
| Kompatibilität |
Onvif Version 19.12, Profile S, Profile G, Profile T Simultaneous Live View: Up to 20 channels Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| Operating humidity. | 0% RH ~ 90% RH |
| Operating temperature. | -30°C ~ 65°C |
| Unterstützte Browser | Edge |
| Unterstützte Betriebssysteme | Windows 10 |
| Lieferumfang |
FCS-4051 Screw Kit Power adapter Quick Installation Guide Resource CD (User Manual, Utility, QIG) |
