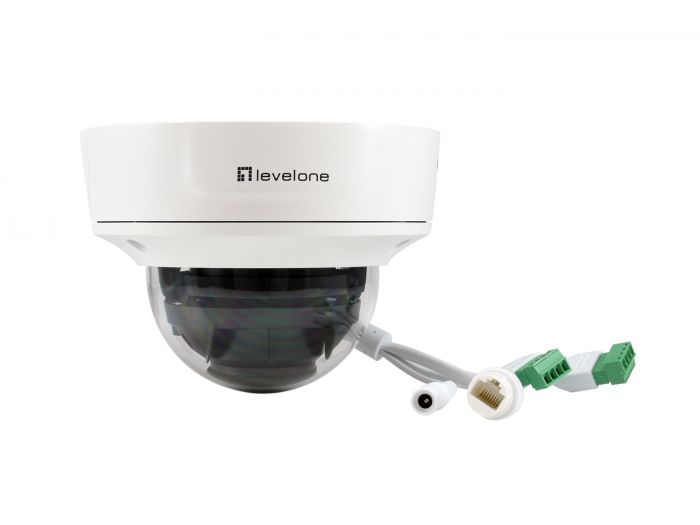

FCS-3098 , GEMINI ZOOM IP CAMERA, 8-MP, H.265, 802.3AF, POE, IR LEDS, INDOOR/OUTDOOR, TWO-WAY AUDIO
Modellnummer
FCS-3098
SKU
57303307201
Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
The LevelOne FCS-3098 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP67 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3098 offers 8-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 852589 |
| Zolltariflicher Warencode (TARIC) | 8525890000 |
| Features 1. | |
| Features. |
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Line crossing detection, intrusion detection Supports human and vehicle targets classification assword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 8 Megapixels |
| Resistance. | Weatherproof, Vandalproof |
| IP Camera series. | GEMINI |
| Camera Type. | Dome |
| Zoom type. | Motorization |
| PoE Supported. | Yes |
| Physical Specifications. | |
| Dimensions (W x D x H). | Ø 153.3 mm × 111.6 mm (Ø 6.1" × 4.4") |
| Produktgewicht (kg) | 0.8 |
| System Specifications. | |
| Betrachtungswinkel | FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35° |
| Audioformat | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Bildsensor | 1/2.8" Progressive Scan CMOS |
| Indikator | Power/Link Act |
| IR Sperrfilter | Ja |
| Infrarotdistanz in m | 40 Meter |
| Linse | Varifocal lens, mMtorized Lens, 2.8 to 12 mm |
| Minimale Beleuchtung (Lux) | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Befestigung | Ceiling mount |
| Port Configuration | 10 /100Mbps PoE ,DI/DO(Terminal black), Audio in/Out (Terminal black), VDC connector |
| Energieverbrauch |
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Power supply included. | Nein |
| Auflösung |
Main Stream: 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Verschlusszeit | 1/3 s to 1/100,000 s |
| Standards |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Supported storage capacity. | 512 GB |
| Videoformat | H.265/H.264/MJPEG |
| Wetterfestigkeit | IP67 |
| Others. | |
| Zulassungen und Konformität | CE/FCC/RoHs |
| Kompatibilität |
Ooption accessory Mounting Kit : CAS-7359 Junction Box |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -30°C ~ 60°C |
| Unterstützte Browser |
Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Unterstützte Betriebssysteme |
Web Client Language: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -10°C ~ 70°C |
| Lieferumfang |
Screw Kit QIG |
| General. | |
| Farbe | Weiß |
| EAN | 4015867228647 |
| Modellnummer | FCS-3098 |
