FCS-3096 , GEMINI IP CAMERA, 8-MP, H.265, 802.3AF, POE, IR LEDS, INDOOR/OUTDOOR
Modellnummer
FCS-3096
SKU
57303107201

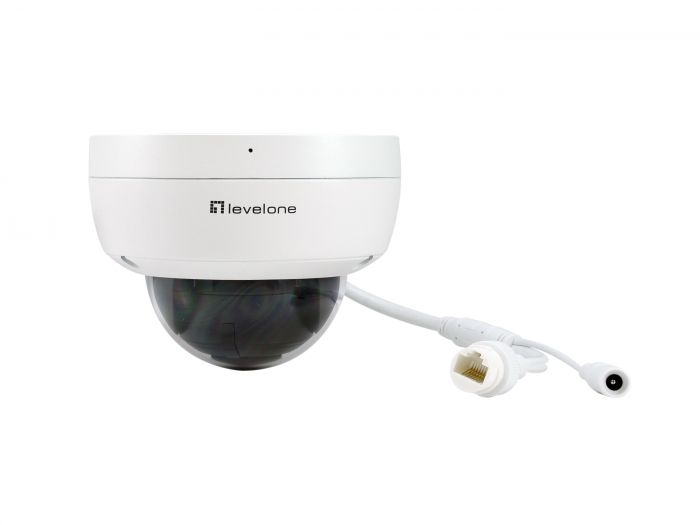

The LevelOne FCS-3096 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP67 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3096 offers 8-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
| Logistics Data. | |
|---|---|
| Code des Harmonisierten Systems (HS) | 852589 |
| Zolltariflicher Warencode (TARIC) | 8525890000 |
| Features 1. | |
| Features. |
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Smart Event Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 8 Megapixels |
| Resistance. | Weatherproof, Vandalproof |
| IP Camera series. | GEMINI |
| Camera Type. | Dome |
| Zoom type. | Fixed |
| PoE Supported. | Yes |
| Physical Specifications. | |
| Dimensions (W x D x H). | Ø 121.4 mm × 92.2 mm (Ø 4.8" × 3.7") |
| Produktgewicht (kg) | 0.55 |
| System Specifications. | |
| Betrachtungswinkel | 87 |
| Audioformat | G.711/G.722.1/G.726/MP2L264Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2) |
| Bildsensor | 1/2.8" Progressive Scan CMOS |
| Indikator | Power/Link Act |
| IR Sperrfilter | Ja |
| Infrarotdistanz in m | 30 Meter |
| Linse | Fixed focal lens, M12 , 4mm ,F1.6 |
| Minimale Beleuchtung (Lux) | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Befestigung | Ceiling mount |
| Port Configuration | RJ-45 ,Power connector |
| Energieverbrauch |
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W |
| Power supply included. | Nein |
| Auflösung |
Main Stream: 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), |
| Verschlusszeit | 1/3 s to 1/100,000 s |
| Standards | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Supported storage capacity. | 512 GB |
| Videoformat | H.265/H.264/MJPEG |
| Wetterfestigkeit | IP67 |
| Others. | |
| Zulassungen und Konformität | CE/FCC/UL |
| Kompatibilität |
Option accessory Mounting Kit : CAS-7360 Junction Box. CAS-7322 Wall Mounting. CAS-7323 Wall Mounting With Junction box. CAS-7324 Pendant moun. CAS-7303 Vertical pole mount. CAS-7307 Corner mount. |
| Operating humidity. | 5% RH ~ 90% RH |
| Operating temperature. | -30°C ~ 60°C |
| Unterstützte Browser | Edge ,Chrome |
| Storage humidity. | 5% RH ~ 90% RH |
| Storage temperature. | -30°C ~ 70°C |
| Lieferumfang |
Screw Kit QIG |
| General. | |
| Farbe | Weiß |
| EAN | 4015867228630 |
| Modellnummer | FCS-3096 |
