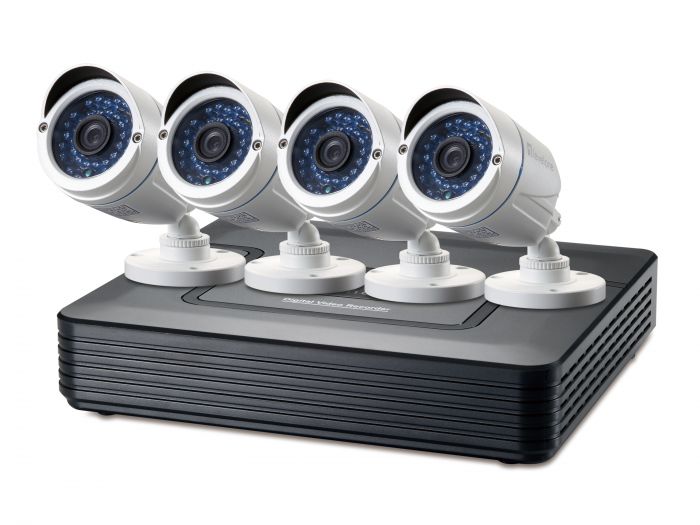

DSK-4001, 4-Channel CCTV Surveillance Kit

Modellnummer
DSK-4001
SKU
53150103301
  • 2-Megapixel high-definition resolution
  • One 3.5 disk slot supports disk capacity of up to 6TB
  • Built-in infrared LEDs for night viewing up to 30m
  • Compatible with HDTVI, AHD, HDCVI and CVBS analog cameras
  • 4 x channels Analog Video input
  • Supports iPhone/Android phone remote viewing over the Internet
  • H.264 compression for efficient data transfer and storage
  • Built-in USB port for backup, support mouse
  • Weatherproof IP66-rated housing
  • Supports VGA, HDMI output
  • The LevelOne 4-Channel CCTV Surveillance Kit offers an ideal way to monitor a large house or building premises, for situations requiring professional-level surveillance. With superior quality, high-definition cameras stationed on all sides of the building, all access points can be securely watched at all times of the day and night. Sophisticated software allows easy monitoring of all eight cameras from any PC, laptop, tablet or smartphone. Cameras all conform to Weatherproof standard IP66, and operate in temperatures from -10°C to 55°C. Built-in infrared LEDs support night monitoring for distances up to 30 metres, providing crystal-clear images at any time, under any conditions. The quality cameras also offer full-screen, high resolution recording and playback. Everything you need for safe, secure surveillance of your home or business, providing the utmost in peace-of-mind.

    More Information
    Logistics Data.
    Code des Harmonisierten Systems (HS) 852190
    Zolltariflicher Warencode (TARIC) 8521900000
    General.
    Farbe Schwarz
    EAN 4015867227862
    Modellnummer DSK-4001
    Features 1.
    Features. Support 4-in-1 AHD/TVI/CVI/CVBS signals
    Non-disclosure.
    Embedded-System Linux
    Physical Specifications.
    Dimensions (W x D x H). 235 x 225 x 45 mm
    Produktgewicht (kg) 1.5
    System Specifications.
    Betrachtungswinkel 96
    Audioformat G.711A
    Batteriekapazität (mAh) 0.006
    Batteriekapazität (Wh) 0.66
    Battery voltage. 3V
    Drive bays. 1
    Bildsensor 1/3" 2-MP Progressive Scan CMOS
    Indikator Power
    H.D.D.
    LAN
    Infrarotdistanz in m 30 Meter
    Linse 3.6 mm,M12
    Minimale Beleuchtung (Lux) 0.5
    Port Configuration 4* BNC, 1*Power, 1* RJ-45, 1*HDMI
    Power supply included. Ja
    Chipsatz Hi3520D V200
    Auflösung DVR: 4*1080N;4*720P;4*960H
    Camera:2-MP
    Verschlusszeit 1/50~1/100,000s
    Standards TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS
    Supported storage capacity. 6 TB
    Video Bandwidth. 32 Kbps to 4 Mbps
    Anzahl der Videokanäle 4-ch
    Others.
    Zulassungen und Konformität CE/FCC,
    Camera Waterproof IP66
    Unterstützte Browser IE 9 above
    Lieferumfang DSK-4001
    4-Channel DVR
    Camera (x4)
    18m BNC Cables (x4)
    Power adapter
    Power Splitter Cable
    Ressource CD
    Quick Installation Guide
